Semih Metals is the leading manufacturer of a wide range of SS 904L hollow bars. These products are available in different sizes, shapes and specifications. 904L Hollow Bar is one of the most popular stainless steel, featuring a combination of chromium and nickel materials, combined with molybdenum and copper Our company ensures the highest quality raw materials are used in these round bars and hole making. These materials provide excellent corrosion resistance and are designed for high mechanical strength and hardness, making them ideal for high temperature and pressure environments Our manufacturing team adheres to manufacturing standards a all established and following international standards during manufacture to guarantee the highest quality.
SS 904L is an austenitic stainless steel known for its excellent resistance to corrosion, particularly in acidic environments. Its composition would roughly equate to 23-28% Cr, 19-23% Ni, 4-5% Mo, with additions of Cu and small amounts of other elements. Material tensile strength is in the vicinity of 520-720 MPa and yield in about the range of 240-310 MPa. SS 904L has good formability and weldability, with superior resistance to pitting, crevice, and stress corrosion cracking, especially in chloride-rich environments.
| Standard | ASTM B649, ASME SB649 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Cu | C | Mn | Si | P | S |
| 904L | 23 – 28 | 4 – 5 | 19 – 23 | 1 – 2 | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | BS | KS | EN |
| 904L | 1.4539 | N08904 | Z2NCUD31-20AZ | SUS 890L | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
SS 904L stainless steel consists of approximately 24-26% chromium, 19-23% nickel, 4-5% molybdenum, 1-2% copper, and small amounts of manganese, silicon, and carbon. The copper enhances corrosion resistance, particularly in acidic environments, while maintaining high strength.

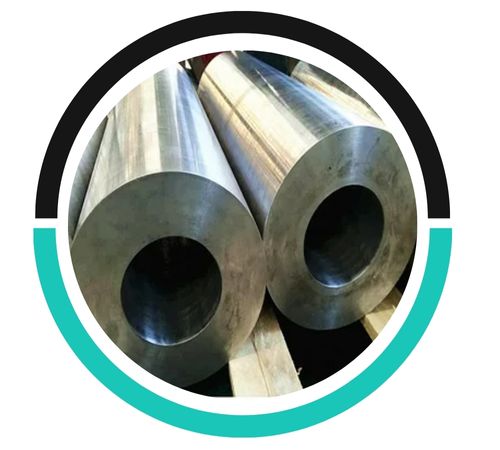

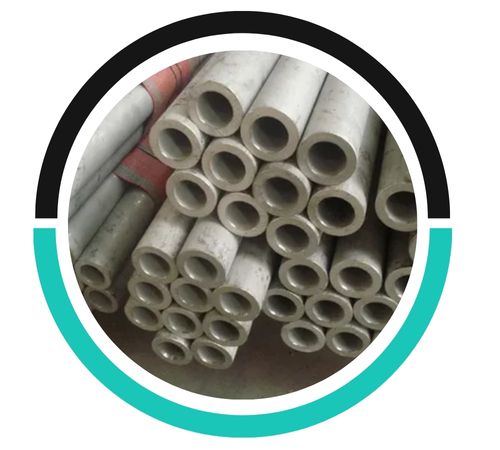

The typical diameter range for SS 904L hollow bars varies from 10 mm to 300 mm, although custom sizes can be manufactured. These bars are available in various wall thicknesses, depending on specific application requirements and industry standards.
SS 904L hollow bars are widely used for industries requiring excellent corrosion resistance, especially in aggressive environments. Common applications include chemical processing, pharmaceuticals, food processing, where resistance against acid is most important, and service in marine environments, desalination plants and in the equipment of pollution control. Furthermore, SS 904L hollow bars have applications in high-temperature exchangers, pressure vessels, and piping systems with severe chemical resistance, offering excellent strength and durability under such extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
