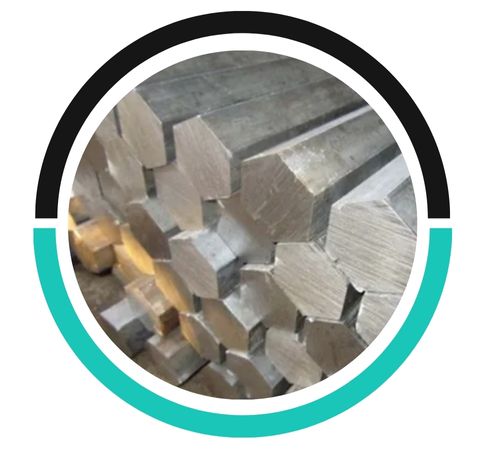

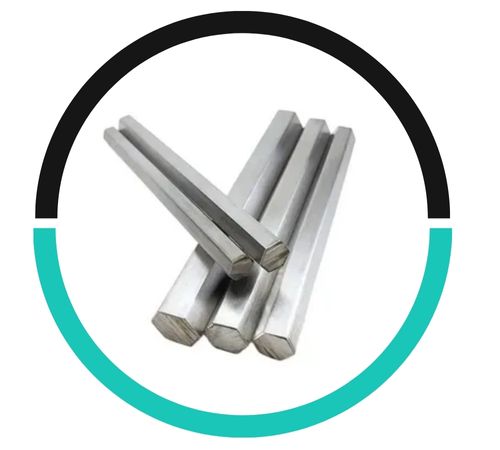

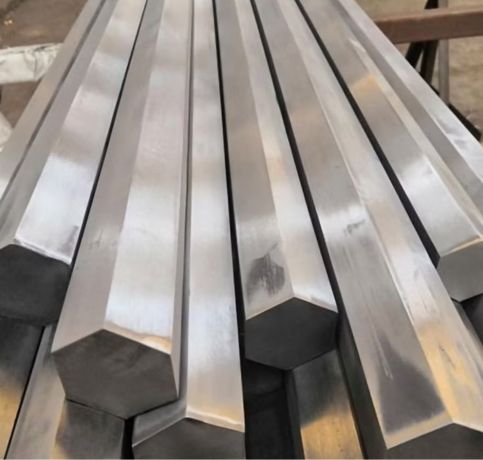

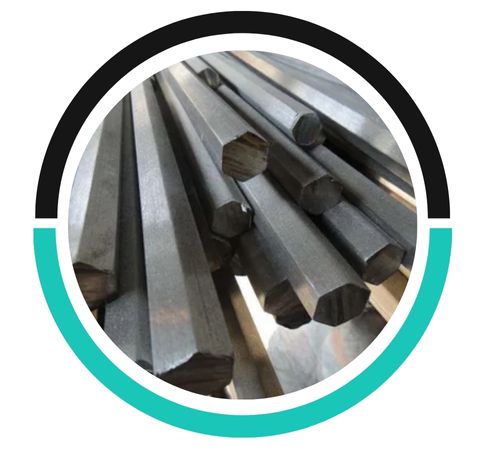

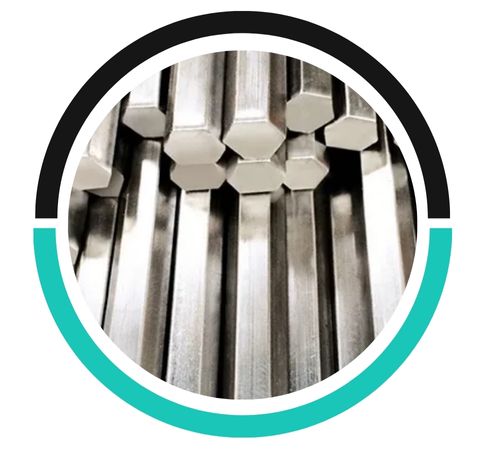

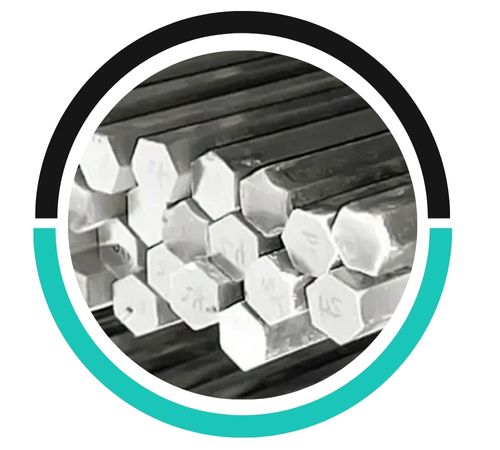

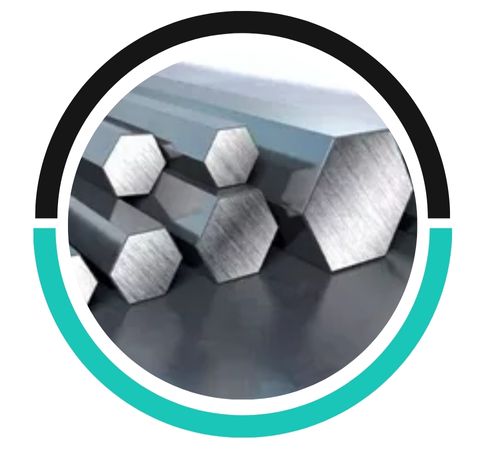

Semih Metals, located in Istanbul, Turkey, is a reliable manufacturer and supplier of Stainless Steel 904L Hex Bars. They provide top-notch stainless steel products designed for high strength, durability, and outstanding resistance to corrosion. Crafted using advanced forging and finishing techniques, all under strict quality control, these hex bars boast precise dimensions, a superior surface finish, and dependable mechanical performance. Semih Metals is committed to maintaining consistent quality, making their Stainless Steel 904L Hex Bars perfect for industries like chemical processing, marine, oil and gas, and power generation, where long-lasting performance in harsh, corrosive environments is essential.
These hex bars are made from a blend of iron, chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%), with a low carbon content to reduce carbide precipitation. This high-alloy mix offers remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking, especially in acidic and chloride-rich settings. On the mechanical side, they deliver excellent tensile and yield strength, toughness, and good formability. The combination of corrosion resistance and mechanical reliability makes 904L hex bars perfect for critical applications that need both strength and durability in tough operating conditions.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 904L Hex Bar offers excellent corrosion resistance, especially against pitting, crevice, and stress corrosion cracking. Its high nickel and chromium content make it ideal for harsh environments like chemical processing, marine, and power plants. The hexagonal shape provides enhanced strength and machinability, ensuring durability and reliability in industrial applications.
SS 904L outperforms many stainless steels, such as 304 and 316, in corrosion resistance due to its higher nickel and molybdenum content. This composition enhances resistance to chloride-induced pitting and crevice corrosion, making it ideal for environments with high chloride concentrations or acidic exposure, such as chemical and marine applications.
SS 904L Hex Bar is commonly used in the chemical, petrochemical, marine, and pharmaceutical industries. It is ideal for applications such as heat exchangers, reactor vessels, pressure vessels, and piping systems, where resistance to corrosion, especially in acidic and chloride-rich environments, is critical for long-term durability and performance.
Stainless Steel 904L Hex Bars find their place in various applications that require high corrosion resistance and structural integrity. They’re commonly used in chemical processing equipment, heat exchangers, storage tanks, valves, offshore platforms, and seawater handling systems. Their exceptional resistance to acids, chlorides, and aggressive chemicals makes them ideal for industries like pulp and paper, pharmaceuticals, and pollution control. Additionally, they are utilized in shafts, flanges, and structural components that demand high durability and precision. With their impressive strength and corrosion resistance, these hex bars are built to last.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
