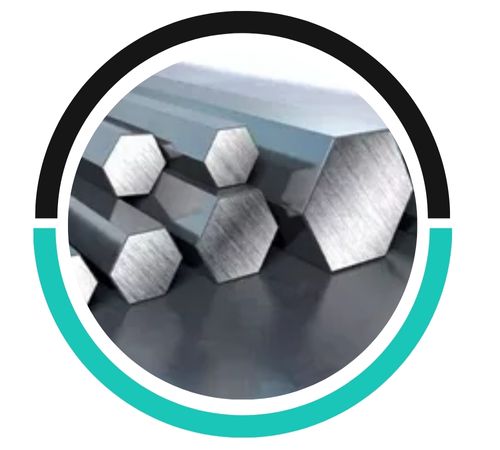

Semih Metals, based in Istanbul, Turkey, stands out as a trusted manufacturer and supplier of top-notch stainless steel products, providing customized solutions for a variety of industrial sectors. Among their wide array of offerings, the **Stainless Steel 202 Hex Bar/Rod** shines as a budget-friendly and robust choice for applications that need moderate corrosion resistance alongside high mechanical strength. With meticulous production processes and rigorous quality checks, the 202 hex bar/rod is celebrated for its durability, ease of fabrication, and attractive finish. Thanks to a solid distribution network and a dedication to quality, Semih Metals caters to clients in construction, manufacturing, automotive, and general engineering fields.

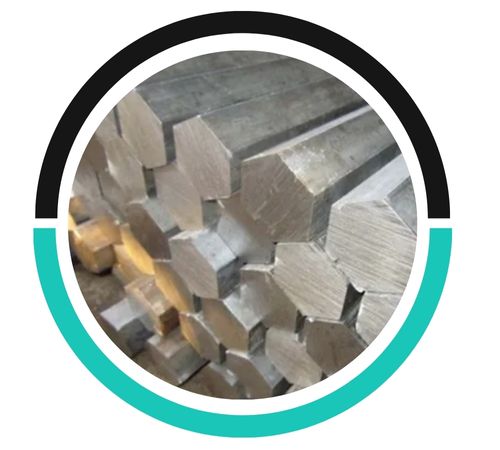

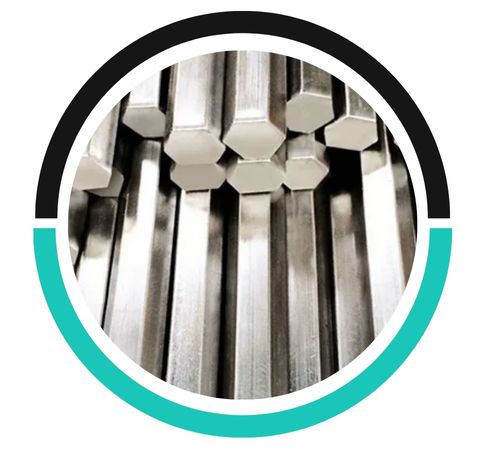

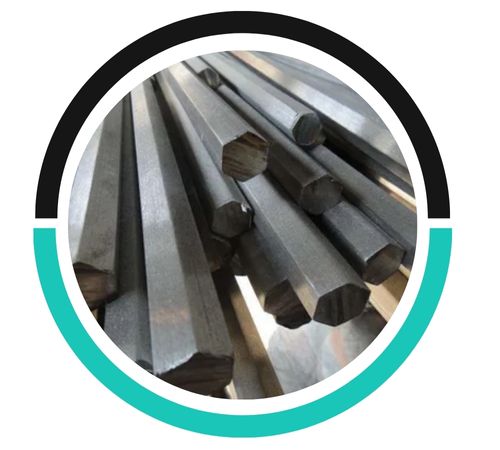

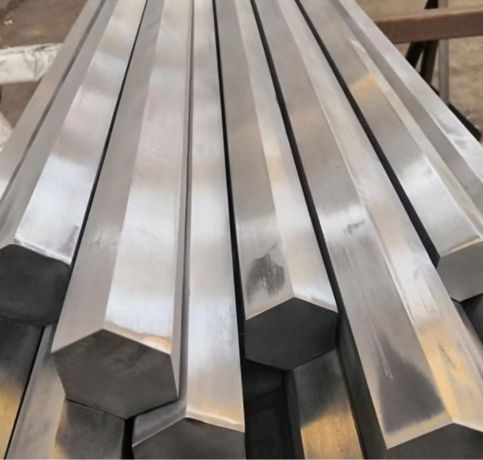

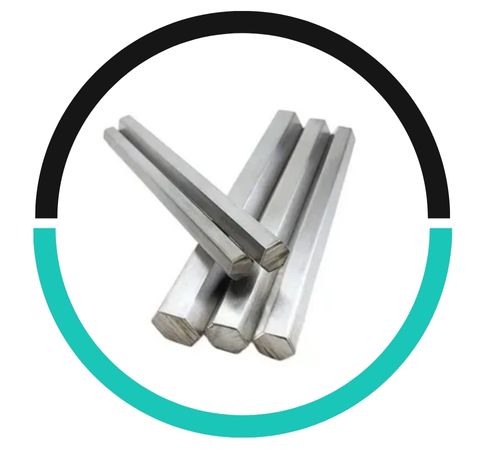

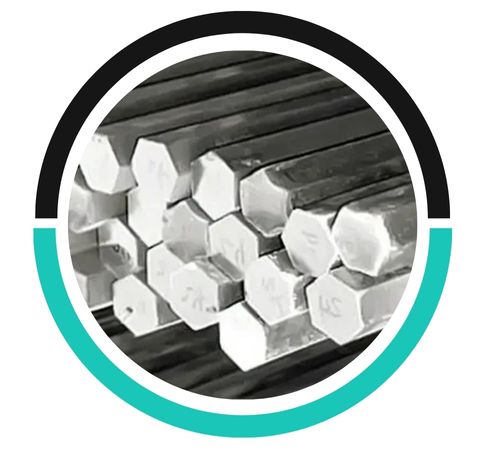

The **Stainless Steel 202 Hex Bar/Rod** is an austenitic stainless steel that contains chromium, nickel, and manganese, typically featuring a composition of 17–19% chromium, 4–6% nickel, and up to 10% manganese. It boasts impressive mechanical properties, including a tensile strength of about 515 MPa, a yield strength of roughly 275 MPa, and an elongation of 40%. While it may not match the corrosion resistance of 304, it holds its own in mild environments. In its annealed state, it’s non-magnetic and maintains good toughness even at lower temperatures. The hexagonal shape enhances grip and provides a mechanical advantage in fastener applications, all while ensuring precise dimensions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 202 | ≤ 0.15 | 17- 19 | 7.50-10 | 4-6 | ≤ 0.060 | ≤ 0.030 | ≤ 1 |
| Element | Tensile Strength | Yield Strength | Elongation |
| SS 202 | 515 MPa | 275 MPa | 40% |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel 202 Hex Bar and Rod is commonly used in manufacturing hardware, fasteners, and structural components. It finds applications in industries such as automotive, construction, food processing, and chemical equipment. Its resistance to corrosion and durability makes it ideal for components exposed to harsh environments, including marine and architectural applications, as well as in the production of machinery.
Stainless Steel 202 Hex Bars and rods are manufactured through processes like extrusion, forging, and cold drawing. The metal is heated, shaped, and then cooled to achieve desired dimensions. This process ensures uniformity, strength, and surface finish. Quality control during each stage guarantees durability, corrosion resistance, and precise tolerances in the final product.
Yes, Stainless Steel 202 Hex Bar/Rod can be welded easily using techniques like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Preheating and proper filler materials are recommended to avoid cracking and maintain weld integrity.
Stainless Steel 202 Hex Bar/Rod finds its place in both structural and decorative applications where strength and cost-effectiveness are paramount. It’s commonly utilized in making fasteners, shafts, fittings, machine components, and automotive trim. Its excellent machinability and weldability make it a go-to choice for fabrication in light construction, furniture, kitchen equipment, and railings. Additionally, its formability and wear resistance make it suitable for use in textile, food processing, and storage systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
