Semih Metals, located in Istanbul, Turkey, manufactures and supplies high-quality stainless steel products. They specialize in Stainless Steel 17-4 PH Hex Bar/Rod. The company is committed to precise engineering and global quality standards. They serve various industries, including aerospace, automotive, marine, and petrochemical sectors. Known for reliability, durability, and consistency, Semih Metals provides materials that perform well under demanding conditions. With modern technology and skilled professionals, the company has built a strong reputation in both local and international markets. They deliver top-quality stainless steel products with every order.

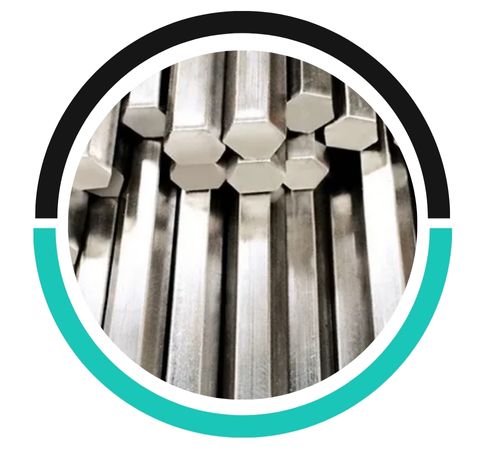

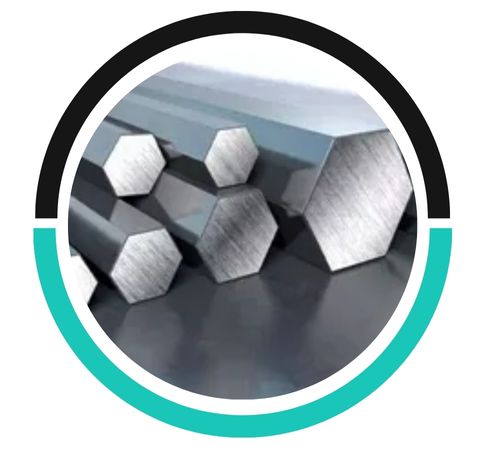

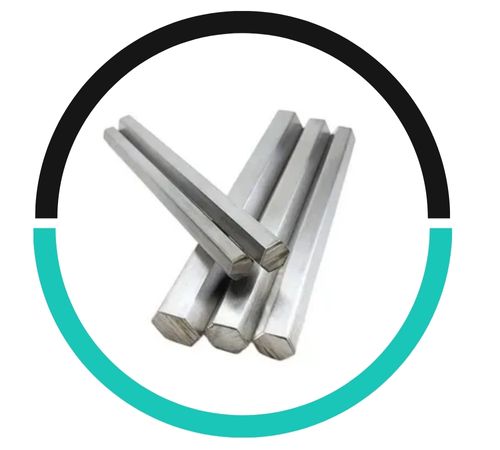

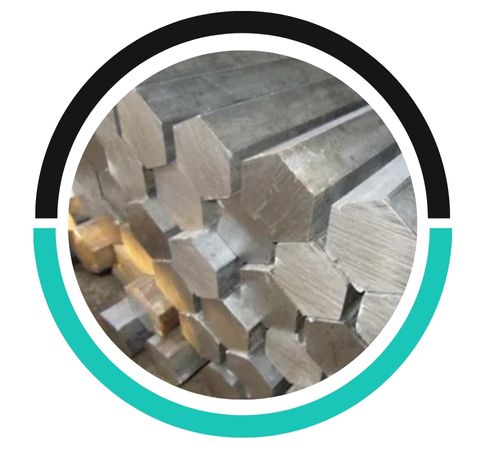

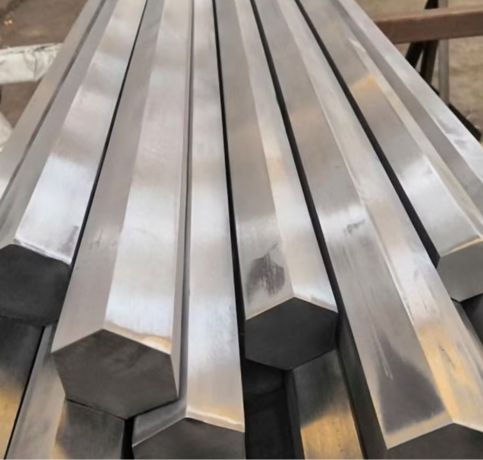

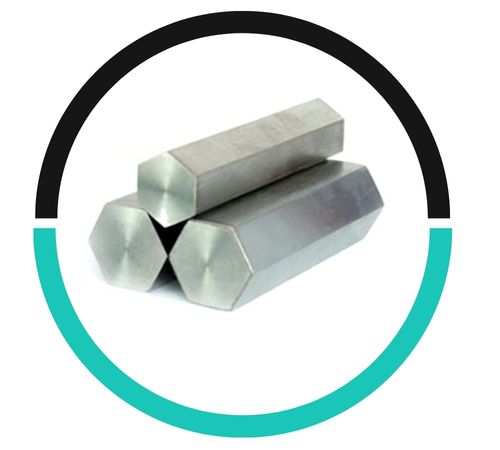

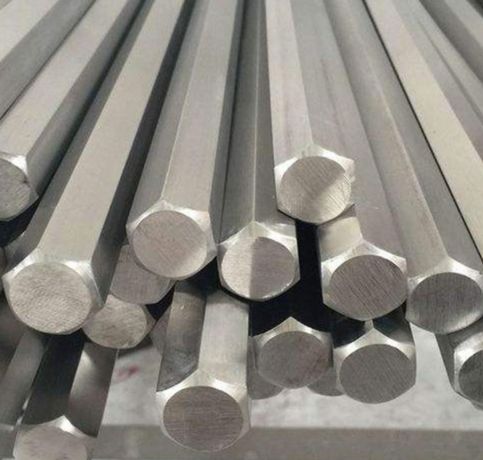

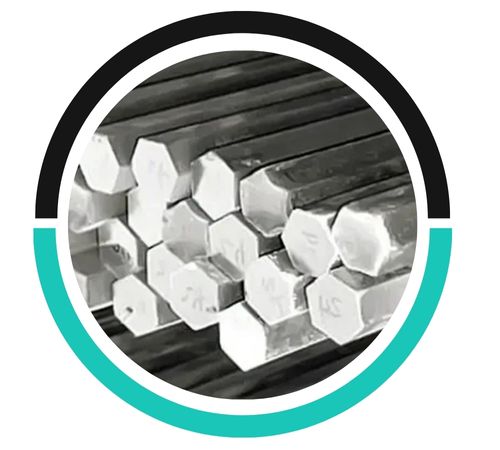

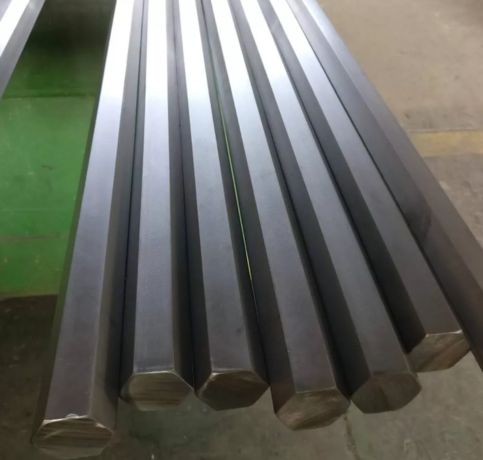

Stainless Steel 17-4 PH Hex Bar/Rod is a martensitic precipitation-hardening stainless steel. It contains about 15–17.5% chromium, 3–5% nickel, 3–5% copper, and trace amounts of niobium and manganese mixed with iron. This blend gives it great corrosion resistance and strong mechanical properties. It has a tensile strength of up to 1310 MPa and a yield strength around 1170 MPa, depending on the heat treatment. Its hardness is between 28–44 HRC, making it one of the strongest stainless steels. It also offers good toughness, wear resistance, and stability in size after machining and heat treatment.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
