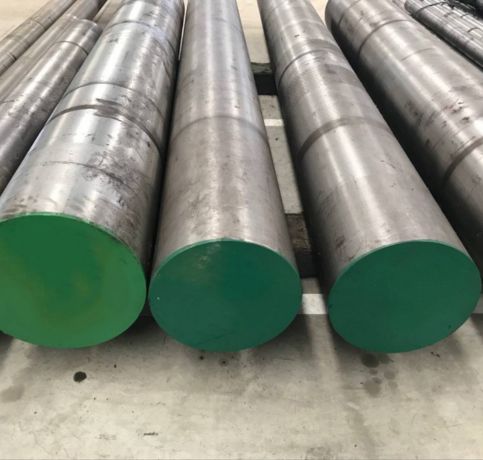

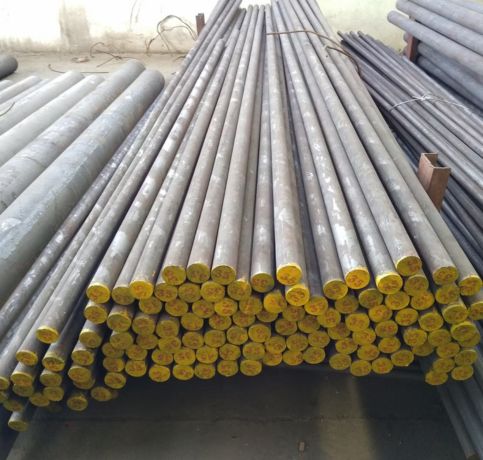

Semih Metals in Istanbul, Turkey is a reputable manufacturer and supplier of W1 Tool and Die Steel bars and high-carbon tool steel products characterized by their machinability and hardness. Semih Metals is committed to precision, reliability, and the adherence to international standards in supplying W1 steel bars to various industries such as toolmaking, machining, and metalworking. The firm’s sophisticated manufacturing techniques and rigorous quality control guarantee repeat product performance. As a provider of reliable tool steels, Semih Metals facilitates large-volume as well as special orders for tooling and die-making purposes.
Tool and Die Steel W1 is water-hardening tool steel containing a high proportion of carbon (preferably 0.90–1.05%) and a small amount of alloying elements. It is famous for gaining high hardness with mere water quenching and provides outstanding edge retention and wear resistance in hardened state. W1 steel normally attains hardness values between 60–66 HRC after heat treatment. It possesses good machinability in annealed condition but may be susceptible to distortion and cracking if not properly quenched. W1 is most suitable for applications where high edge sharpness and surface hardness are more important than impact resistance.
| Element | Content (%) |
|---|---|
| C | 0.70-1.50 |
| Mn | 0.10-0.40 |
| Si | 0.10-0.40 |
| Cr | 0.15 |
| Ni | 0.2 |
| Mo | 0.1 |
| W | 0.15 |
| V | 0.1 |
| Cu | 0.2 |
| P | 0.025 |
| S | 0.025 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 1680 MPa | 244000 psi |
| Tensile strength, yield | 1500 MPa | 218000 psi |
| Poisson’s ratio (25°C) | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 3.50% | 3.50% |
| Bulk modulus | 140 GPa | 20300 ksi |
| Shear modulus | 80.0 GPa | 11600 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Charpy impact, unnotched | 86.0 J | 63.4 ft-lb |
| Hardness, Brinell (converted from Rockwell C Hardness) | 498 | 498 |
| Hardness, Knoop (converted from Rockwell C Hardness) | 558 | 558 |
| Hardness, Rockwell C | 50.0-51.0 | 50.0-51.0 |
| Hardness, Vickers (converted from Rockwell C Hardness) | 531 | 531 |
| Machinability (based on AISI 1212 steel as 100% machinability) | 40 | 40 |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.83 g/cm3 | 0.283 lb/in3 |
| Melting point | 1435°C | 2615°F |
| Properties | Conditions | ||
|---|---|---|---|
| T (ºC) | Treatment | ||
| Thermal expansion | 10.4 x 10-6/ºC | 20-100 | – |
| Thermal conductivity | 48.3 x W/mK | 100 | – |
Tool and Die Steel W1 bars are recyclable, reducing environmental impact. However, their production involves energy-intensive processes. Sustainable practices can enhance their eco-friendliness, such as using recycled materials and cleaner manufacturing methods.
Tool and Die Steel W1 bars are not highly resistant to corrosion, as they are high-carbon steels. They can rust when exposed to moisture, requiring proper maintenance, such as coating or regular oiling, to prevent corrosion.
W1 tool steel bars are extensively used for applications demanding high wear resistance with sharp edges at moderate loading conditions. Typical applications include cutting tools, engraving tools, knives, reamers, chisels, and punches. It finds extensive use in woodworking and general-purpose tooling wherein edge retention is of prime importance. Because of its tendency to harden in water, W1 is generally applied in small tools or parts where a small amount of distortion upon quenching is acceptable. Although not suitable for high-impact or high-heat purposes, W1 provides an economical answer for high-precision tools that need a hard, keen edge.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
