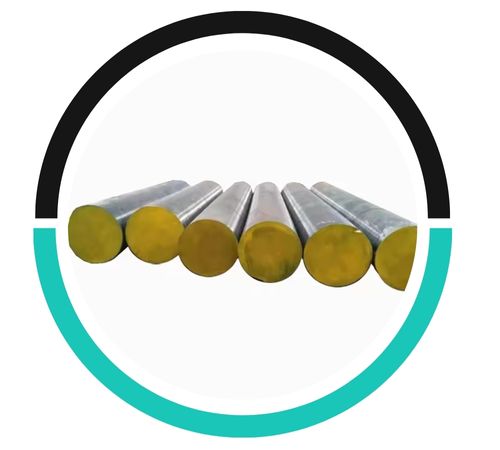

Semih Metals, Istanbul Turkey, is a well-established manufacturer and supplier of Tool and Die Steel P20 bars, with expertise in high-quality pre-hardened steel products for tool and mold-making industries. Semih Metals is renowned for its consistent dimensional stability and superior machinability, ensuring its P20 bars are conforming to international specifications and customer orders. Supplying industries like plastic injection molding, automotive, and general manufacturing, the company applies cutting-edge production techniques and stringent quality control to ensure stable materials that sustain precision tooling and durable molds.
Tool and Die Steel P20 is a chromium-molybdenum alloy steel generally supplied in a pre-hardened condition of about 28-32 HRC. Its chemical composition contains around 0.28-0.45% carbon, 1.4% chromium, and 0.3% molybdenum, providing good resistance to wear, toughness, and excellent machinability. P20 steel is appreciated for its dimensional stability upon machining and heat treatment, thus making it suitable for the manufacture of molds and dies with close tolerances. Its medium hardness offers an ideal combination of strength and ease of machining.
| C % | Mn % | Si % | Cr % | Mo % |
| 0.40% | 1.00% | 0.40% | 1.20% | 0.35% |
| Properties | Metric |
| Hardness, Brinell (Typical) | 300 |
| Hardness, Rockwell C (Typical) | 30 |
| Tensile Strength, Ultimate | 965-1030 MPa |
| Tensile Strength, Yield | 827-862 MPa |
| Elongation At Break (In 50 Mm (2″)) | 20.00% |
| Compressive Strength | 862 MPa |
| Charpy Impact (V-Notch) | 27.1-33.9 J |
| Poisson’s Ratio | 0.27-0.30 |
| Elastic Modulus | 190-210 GPa |
| Country | USA | German | GB/T | JIS |
| Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 | |
| Grades | P20 | 1.2311 | 3Cr2Mo | PDS-3 |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Thermal Expansion | 12.8 X 10-6/ºC | 20-425 | – |
When choosing P20 tool and die steel bars, consider machinability, toughness, hardness, heat treatment capabilities, corrosion resistance, application requirements, cost-effectiveness, and availability of suitable sizes for your specific needs.
Tool and die steel P20 bars are typically sized by their diameter and length, with common diameters ranging from 1 inch to 10 inches, and lengths ranging from 10 to 20 feet.
P20 tool steel bars are extensively applied in mold making, specifically for plastic injection molds, die-casting dies, and other tooling applications where precision and wear resistance are needed. It is generally used for core and cavity inserts, mold bases, and structural parts of molds. P20’s excellent polishability and ability to withstand cracking during heat treatment contribute to its suitability in various industries like automotive, electronics, and consumer products manufacturing. Its robustness and consistent performance are responsible for extended mold life and enhanced production efficiency.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
