Copper C10500 Bar/Rods

Semih Metals, headquartered in Istanbul, Turkey, is a reputable manufacturer and supplier of premium non-ferrous metal products. With a commitment to quality, precision, and innovation, the company offers a wide selection of copper alloys, including high-purity **Copper C10500 Bars/Rods**. Known for their exceptional electrical and thermal conductivity, these bars and rods are engineered to meet the stringent requirements of electrical, electronic, and industrial applications. Semih Metals combines advanced manufacturing technology with rigorous quality standards to deliver consistent, high-performance products tailored for both domestic and international clients in demanding technical sectors.

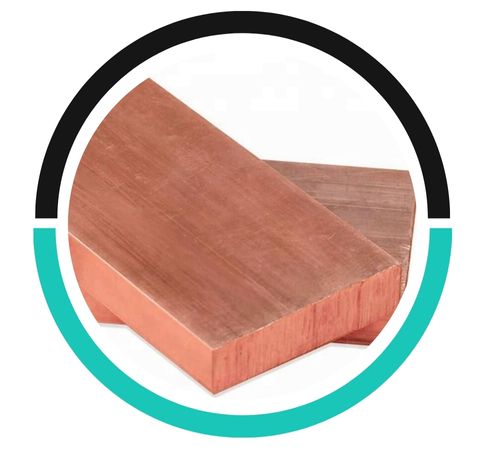

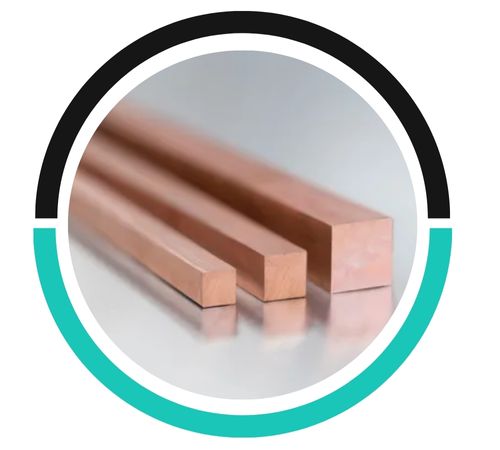

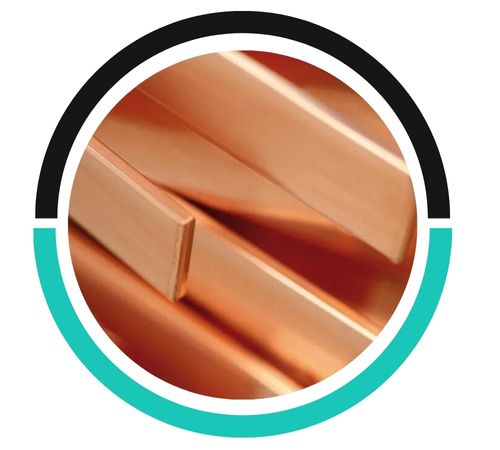

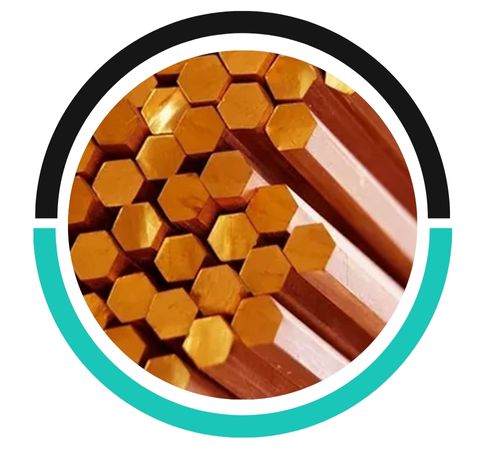

C10500 Copper Round Bars Turkey, Copper C10500 Hexagonal Bars Supplier in İzmir, C10500 Copper Bus Bars Exporter in Turkey, Copper C10500 Hex Bars Stockist in Istanbul, C10500 Copper Alloy Rectangular Bars Supplier in Turkey,Copper C10500 Square Bars Distributor in İzmir, 3/16" Copper C10500 Rod Stockist Antalya, C10500 3/8" Copper Alloy Round Rod Price in Antalya, Copper Flat Bars Turkey

Copper C10500 Forging Rod

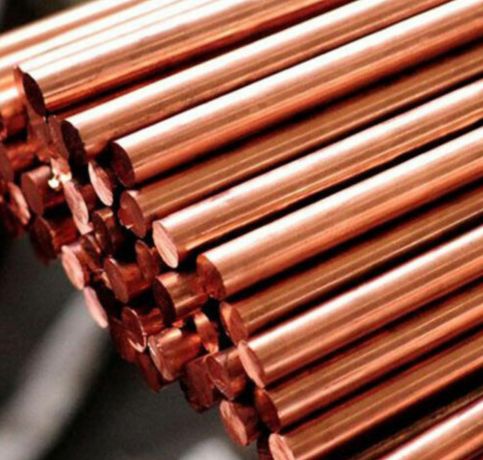

Copper C10500 Bus Bars

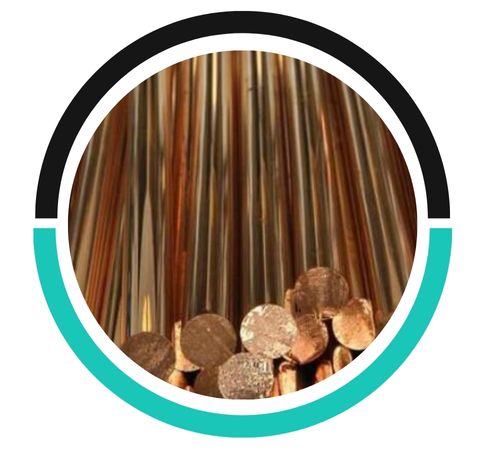

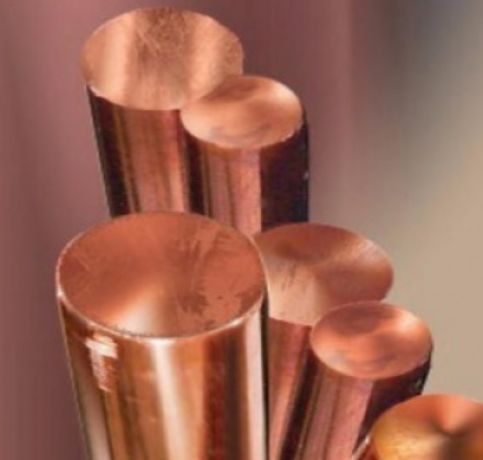

C10500 Copper Bright Rods

What is Copper C10500 Bar/Rods

**Copper C10500 Bars/Rods** are composed of oxygen-free electronic (OFE) copper, containing a minimum of 99.99% pure copper with extremely low oxygen content (less than 0.0005%). This results in unmatched electrical conductivity (over 101% IACS) and excellent thermal transfer capabilities. The alloy also offers superior resistance to hydrogen embrittlement, making it suitable for vacuum and high-purity environments. Mechanical properties include a tensile strength range of 220–360 MPa and high elongation up to 50%, depending on the temper. C10500 is non-heat treatable but can be cold worked, ensuring optimal formability and structural integrity in precision components.

C10500 Copper Forging Rod Price List in Istanbul, Copper C10500 Threaded Bars Supplier in Bursa, Copper C10500 Copper Hexagonal Bars Exporter in West Istanbul, C10500 Pure Copper Rods Exporter in Turkey, C10500 Copper Round Bars Manufacturer in Antalya, Copper C10500 Round Bars Distributor in Turkey, C10500 Copper Half Round Bars Dealer in West Istanbul, Stockist of C10500 Copper Forged Bar in Bursa, 20mm Copper C10500 Round Bar Supplier in Turkey, C10500 Oxygen Free Copper Rectangle Rods Exporter in Bodrum

Copper C10500 Bar and Rods Specification

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10500

Copper C10500 Bar and Rods Chemical Compositions

Elements
Cu^(1,2,3)	Ag⁽⁴⁾	O
(1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS. (2) Cu value includes Ag. (3) Cu is determined by the difference between the impurity total and 100%. (4) Ag 0.034% min is the equivelant of, Ag 10 Troy Oz min.
Min (%)	99.95	0.034
Max (%)			0.001

Copper C10500 Bar and Rods Mechanical Properties

Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rockwell B scale	Rockwell F scale	Shear Strength (ksi)	Section Size (in)	Cold Work (%)
* Measured at room temperature, 68°F (20°C).
Rod	As Hot Rolled	M20	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1
	Hard	H04	55 Typ	50 Typ	10 Typ	60 Typ	94 Typ	29 Typ	0.25	40
	Hard	H04	45 Typ	40 Typ	20 Typ	45 Typ	85 Typ	26 Typ	2	16
	Hard	H04	48 Typ	44 Typ	16 Typ	47 Typ	87 Typ	27 Typ	1	35
	Nominal Grain Size 0.050 mm	OS050	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1

You Need Our Support, to Have Any Projects?

Test Certificate

Why Semih Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10500 Bar/Rods Types

C10500 Wrought Copper Alloy Rod & Bar Size Chart, C10500 Copper Round Rods Price in Antalya, Copper C10500 Round Bars Supplier in İzmir, C10500 Copper Bus Bar Stockist in Bursa, Copper C10500 Half Round Bar Supplier in Istanbul, C10500 Copper Forged Bar Dealer in West Istanbul, 20mm Copper C10500 Round Bar Manufacturer in West Istanbul, C10500 Copper Round Rods Supplier in Bodrum

Frequently Asked Questions (FAQ)

What Are The Considerations For Selecting Copper C10500 Bar and Rods?

When selecting Copper C10500 Bars and Rods, consider factors like conductivity, corrosion resistance, machinability, application requirements, and environmental conditions to ensure optimal performance and durability.

Can Copper C10500 Bars and Rods Be Used in Cryogenic Applications?

Yes, Copper C10500 Bars and Rods can be used in cryogenic applications due to their excellent thermal conductivity and mechanical stability at extremely low temperatures.

Do Copper C10500 Bar and Rods Require Regular Inspection?

Yes, Copper C10500 Bars and Rods require regular inspection to ensure their performance, detect wear or damage, and maintain their structural integrity in demanding applications.

Copper C10500 Bar & Rods Uses

Copper C10500 Bars/Rods are widely used in critical applications that require ultra-high conductivity and minimal contamination. They are ideal for high-current electrical conductors, vacuum tube components, waveguides, and RF/microwave systems. Their purity and low outgassing characteristics make them suitable for semiconductor fabrication equipment and ultra-high vacuum chambers. In power generation and distribution systems, C10500 is utilized in grounding bars, transformer terminals, and bus conductors. The material is also favored in aeros

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
