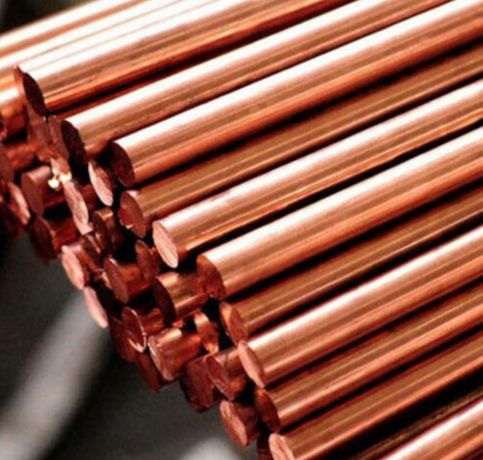

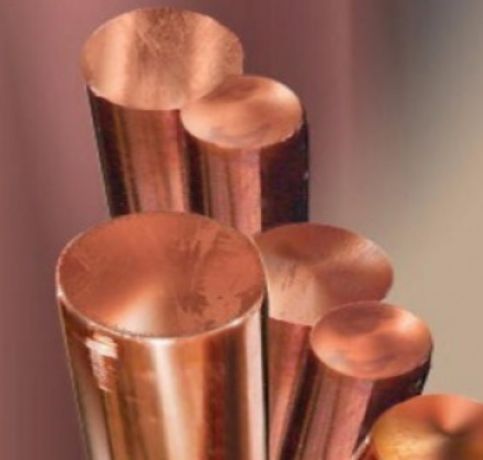

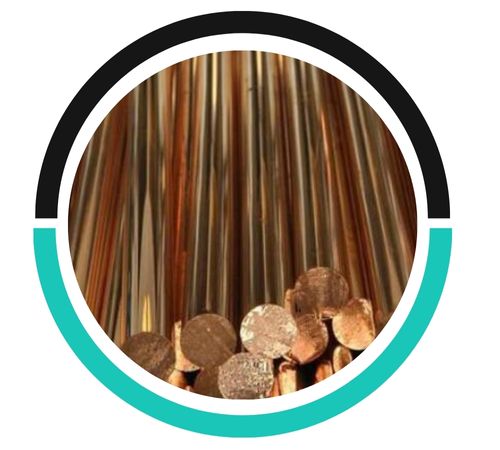

Semih Metals, located in Istanbul, Turkey, is a well-respected manufacturer and supplier of top-notch copper products, including Copper C10200 Bars and Rods. With a strong focus on precision and quality, Semih Metals caters to various industries such as electrical, electronics, telecommunications, and industrial manufacturing. Copper C10200 Bars and Rods are prized for their outstanding electrical conductivity, ductility, and resistance to corrosion. Crafted to meet international standards, these bars and rods are perfect for a wide array of applications that demand reliable performance and durability. Semih Metals is dedicated to ensuring consistent product quality, timely deliveries, and comprehensive technical support for clients around the globe.
Copper C10200 Bars and Rods, often called electrolytic tough pitch (ETP) copper, boast a minimum copper content of 99.9% along with trace amounts of oxygen. This unique composition provides exceptional electrical conductivity (typically around 97% IACS) and high thermal conductivity. The alloy also offers good tensile strength (about 210–250 MPa) while maintaining superior ductility and ease of machining. Copper C10200 effectively resists corrosion in both atmospheric and marine environments, making it ideal for various industrial applications that require both conductivity and mechanical strength.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

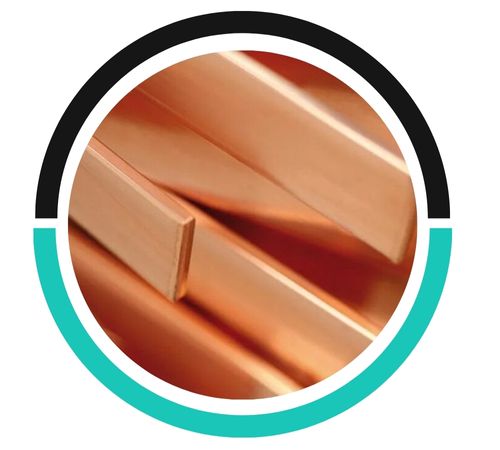

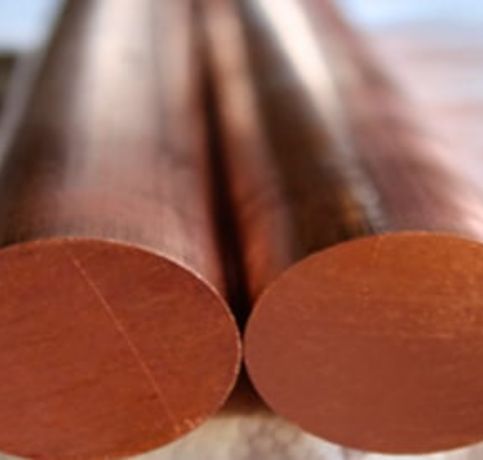

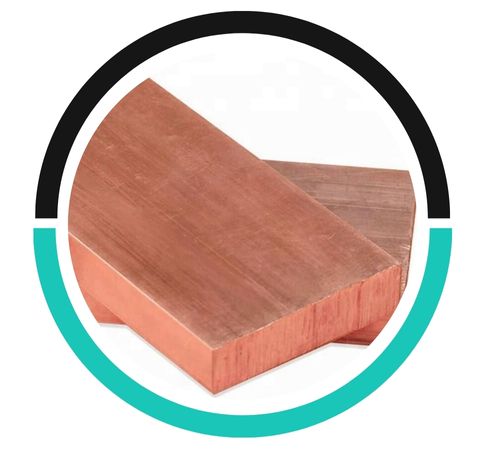

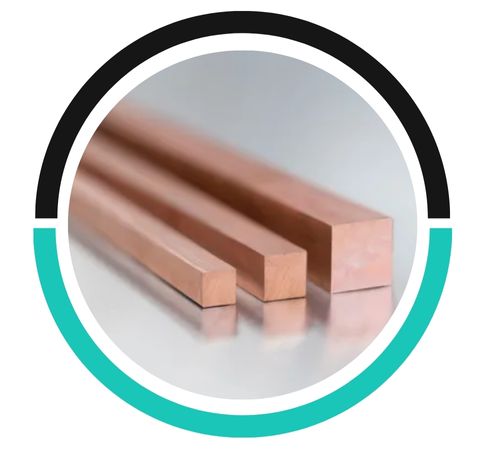

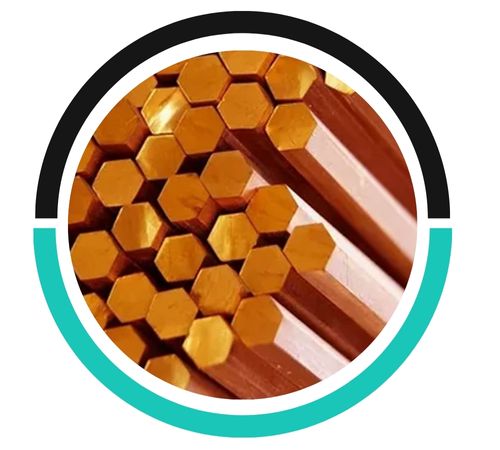

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.
You’ll find Copper C10200 Bars and Rods widely used in electrical wiring, bus bars, connectors, motor windings, and switchgear components, thanks to their excellent electrical and thermal properties. They’re also essential in telecommunications, power generation, and electronics industries. Plus, Copper C10200 is a great choice for plumbing, heat exchangers, and precision-machined parts. Semih Metals offers Copper C10200 Bars and Rods in a variety of sizes and finishes, tailored to meet specific customer needs, ensuring durability, reliability, and high performance in even the most demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
