These Beryllium Copper C17510 Bars and Rods are made from a copper alloy that includes beryllium, cobalt, and nickel in carefully controlled proportions. This distinctive blend offers remarkable electrical and thermal conductivity while ensuring outstanding mechanical strength. With tensile strength ranging from 700 to 1400 MPa and yield strength between 500 and 1200 MPa, depending on the temper, these bars and rods demonstrate impressive hardness and wear resistance. They also possess good corrosion resistance, non-magnetic characteristics, and excellent machinability. The combination of conductivity and mechanical performance makes Beryllium Copper C17510 Bars and Rods particularly well-suited for challenging environments where both strength and conductivity are essential.
Beryllium Copper C17510 bars and rods, commonly referred to as Alloy 10, is a high-strength, high-conductivity copper alloy with 0.4–0.7% Beryllium, 1.8–2.0% Cobalt, and the rest as Copper. The alloy exhibits superior mechanical properties such as tensile strength 140–200 ksi (965–1379 MPa) and hardness in the range of 180–300 HB based on temper. Electrical conductivity remains satisfactory at about 45–60% IACS. Thermal conductivity is superior, corrosion resistance excellent, and ideal for applications that need a combination of strength and conductivity; examples include electrical connectors, springs, and industrial tooling components.
Dimensions : AMS, ASTM / ASME, CDA, MIL-SPEC / Federal (QQS), SAE, UNS, Specialty / Other
Specifications : ASTM B441 / ASME SB 441
Grade : C17500 / C17510
Diameter : 1mm to 100mm

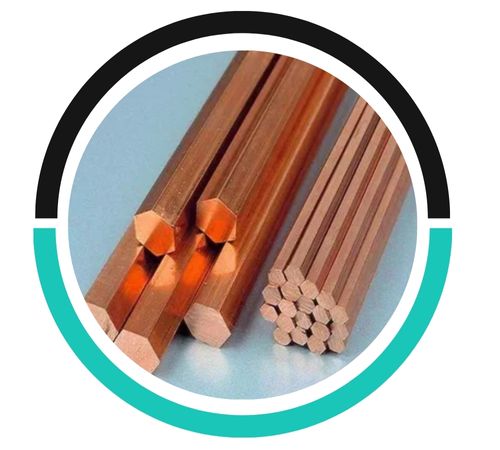

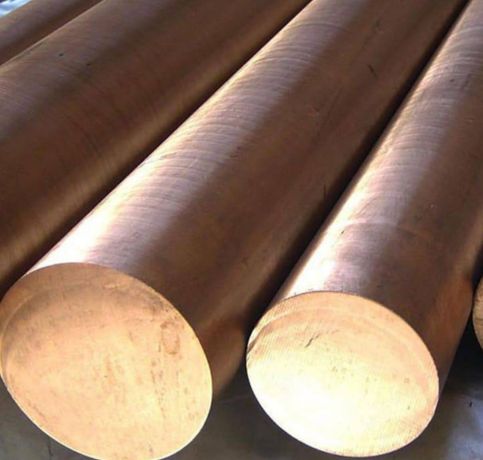

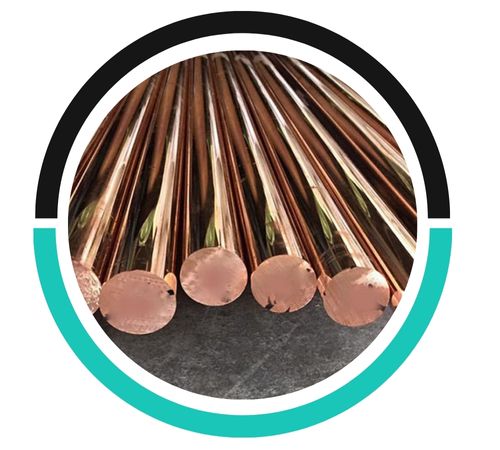

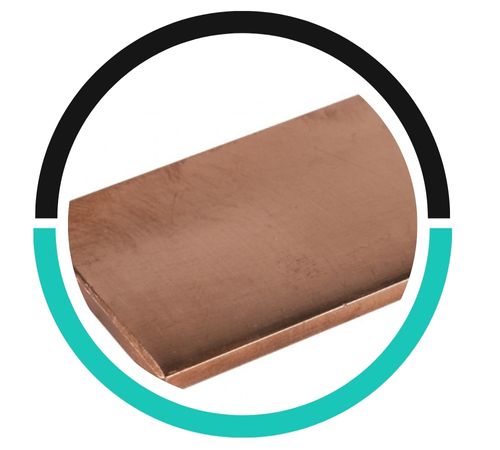

Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : customized, as required
Finish : Bright, Polish & Black
| Element | Be | Co | Ni | Co+Ni | Co+Ni+Fe | Pb | Al | Si | Fe | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| Beryllium C17510 | 0.2-0.6 | 0.3 max. | 1.4-2.2 | – | – | – | 0.2 max. | 0.2 max. | 0.1 max. | Bal |
| Element | Density (g/cm3) | Elastic Modulus(MPA) | Thermal Expansion | Thermal Conductivity(w/(m.k) | Melting Temperature(C) |
|---|---|---|---|---|---|
| Beryllium C17510 | 8.83 | 138000 | 18 | 240 | 1030-1080 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Alloy No. 10 | 2.1285 | C17500 |
| Alloy No. 3 | 2.0850 | C17510 |
Yes, Beryllium Copper C17510 rods can be customized in size and length based on specific requirements. Manufacturers often offer tailored dimensions to meet diverse industrial applications.
Yes, Beryllium Copper C17510 Bars exhibit good corrosion resistance, particularly against atmospheric and seawater environments, making them suitable for applications requiring durability and resistance to oxidation and chemical degradation.
Beryllium Copper C17510 Bars and Rods find extensive applications in industries that require high strength alongside superior conductivity. In the electronics field, they are commonly used in connectors, switches, and relays. In aerospace and defense, they serve critical roles in landing gear bushings, fasteners, and other high-performance components that face stress and fatigue. The automotive industry also relies on them for precision components, sensors, and engine parts. Moreover, their non-sparking and corrosion-resistant properties make them perfect for applications in the oil and gas sector, among others.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
