Semih Metals, a leading Istanbul-based Turkey company, is a reliable producer and supplier of Titanium Grade 11 bars and rods and delivers titanium solutions resistant to corrosion and long-lasting for mission-critical industrial applications. Renowned for precise engineering and compliance with global standards, Semih Metals delivers Titanium Grade 11 products specially designed to fulfill the high requirements of the chemical, marine, and power generation industries. With high production ability and rigorous quality control procedures, the company is guaranteed consistent performance and extended service life. Semih Metals remains a trusted supplier of industries needing high-quality corrosion-resistant titanium.
Titanium Grade 11 is a commercially pure titanium alloy comparable to Grade 1, but with the inclusion of a small percentage of palladium (0.12–0.25%) for enhanced corrosion resistance, especially in reducing and acidic conditions. It possesses tensile strength of approximately 240–350 MPa with a yield strength of about 170 MPa, with an elongation of up to 24%. Grade 11 has superb ductility, weldability, and formability. The addition of palladium increases the resistance to crevice corrosion and pitting, rendering it appropriate for environments that would normally pose difficulties to unalloyed titanium grades.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

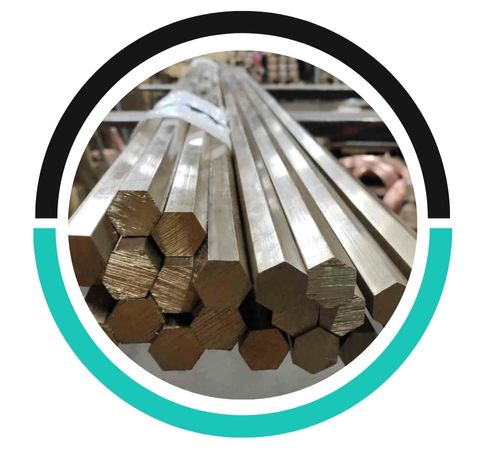

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@semihmetal.com
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium Grade 11 bars and rods are commonly applied in industries that require corrosion resistance in aggressive environments. They are suitable for piping systems, pressure vessels, and heat exchangers in the chemical processing industry that are exposed to chlorides and acidic solutions. In marine environments, Grade 11 is utilized for parts that are exposed to long-term seawater and brine. It is also used in desalination plants, pollution control systems, and offshore structures. Its corrosion resistance and formability make it ideal for use in fabricated and welded assemblies under severe operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
