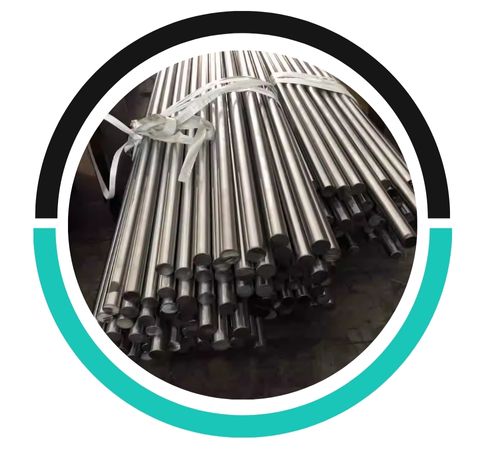

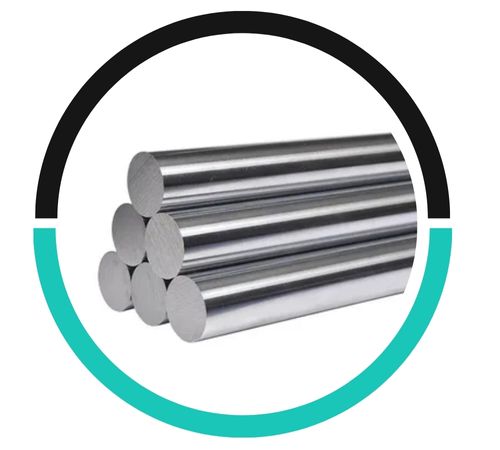

Semih Metals, located in the Istanbuls, Turkey is a leading manufacturer and supplier of a diverse range of products. Including Stainless Steel, Aluminium, Carbon and High Nickel Alloys. Among their offerings Stainless Steel 410 Round Bars/Rod stands out for its durability and corrosion resistance . These rods are commonly used in industries where Strength, Wear Resistance and Toughness are important. Composed of martensitic stainless steel, Stainless Steel 410 offers excellent oxidation resistance and moderate corrosion protection. Making it an ideal choice for heavy-duty applications.
Stainless Steel 410 Round Bars/Rod is a martensitic stainless steel alloy primarily used for its strength, wear resistance, and corrosion resistance in various applications. It contains approximately 11.5% to 13.5% chromium. Which provides excellent oxidation resistance and up to 0.15% Carbon allowing it to be hardened through heat treatment. This alloy also has low levels of Manganese, Silicon and Phosphorus contributing to its durability. Stainless Steel 410 is known for its ability to withstand moderate corrosion in atmospheric and mildly corrosive environments. Making it ideal for use in Valves, Pumps, Shafts and Industrial equipment where strength is Important.
Stainless Steel Round Bar Specification : ASTM A276 / A479, ASME SA276 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

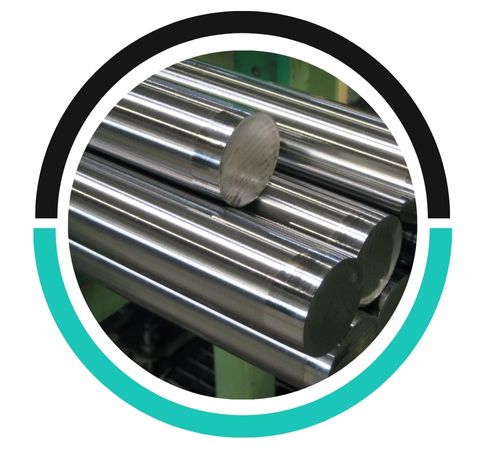

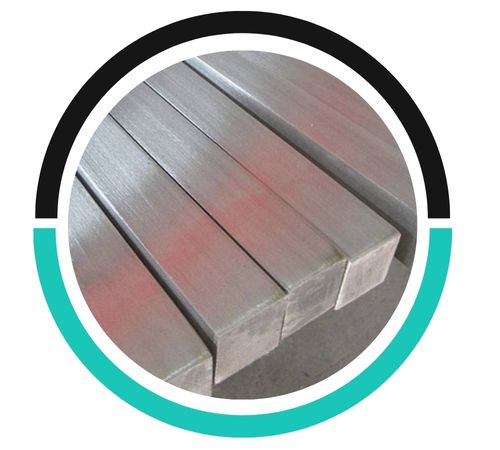

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Element | S | Cr | Si | C | P | Mn | Ni |
| SS 410 | 0.030 | 11.5-13.5 | 1.00 | 0.15 | 0.040 | 1.00 | 0.75 |
| Elongation | Melting Point | Yield Strength (0.2%Offset) | Density | Tensile Strength |
| – | – | MPa – 275 | – | MPa – 480 |
| STANDARD | UNS | BS | EN | JIS | WERKSTOFF NR. | GOST | AFNOR |
| SS 410 | S41000 | 410S21 | 56A | SUS 410 | 1.4006 | – | – |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|

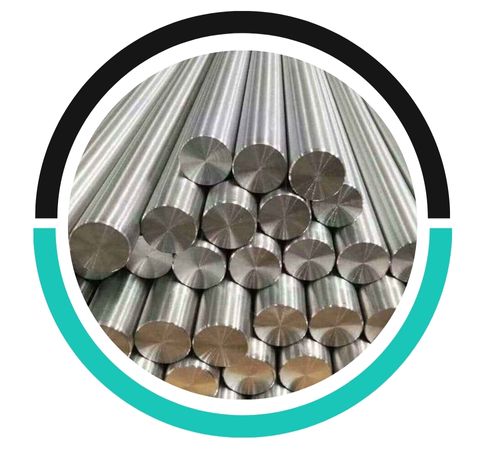

Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |

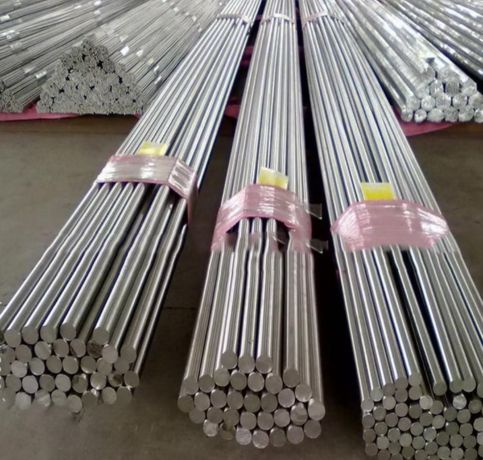

Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm). 410 Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of 904L Stainless Steel Bars 2000 mm up to 6000 mm available
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 904L.0 |
Stainless Steel 410 Round Bars/Rod generally does not require additional corrosion protection coatings, as it offers moderate corrosion resistance due to its chromium content. However, in highly corrosive environments, coatings may enhance durability.
When selecting Stainless Steel 410 Round Bars/Rod, consider factors like strength requirements, corrosion resistance, heat treatment needs, and the specific application environment to ensure optimal performance and durability.
Stainless Steel 410 Round Bars/Rod is not ideal for hygienic and sanitary applications due to its moderate corrosion resistance. For such uses, higher grades like 304 or 316 are recommended for better resistance.
SS 410 Round Bars/Rod is widely used in industries that require materials with High Strength, Wear Resistance and Moderate Corrosion Resistance. It is widely used in the manufacture of valves, pumps, shafts, bolts and fasteners. In addition to this, in the manufacture of surgical instruments, cutlery and kitchen equipment. The largest sectors where Stainless Steel 410 Round Bars/Rod is used majorly are the Automotive, Aerospace, Chemical, Petrochemical and Construction Sectors. It is also widely used in the manufacture of Heat Exchangers, Food Processing Equipment and Industrial Machinery. Because of its heat resistance and ability to withstand mechanical stress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
