Semih Metals is one of the premier manufacturers and suppliers of metal products in the Istanbul, Turkey. Specialized in an assortment of materials, we take great pride in being able to provide premium Stainless Steel 347 Square Bars and Rods. Resistant to excellent corrosion properties and high strength levels, and designed to handle even the highest of temperature conditions, these products find applications in various demanding areas like aerospace, chemical processing, and power generation. Semih Metals ensures precision manufacturing and excellent service, providing customized solutions to the specific needs of our clients for reliable and durable stainless steel products.

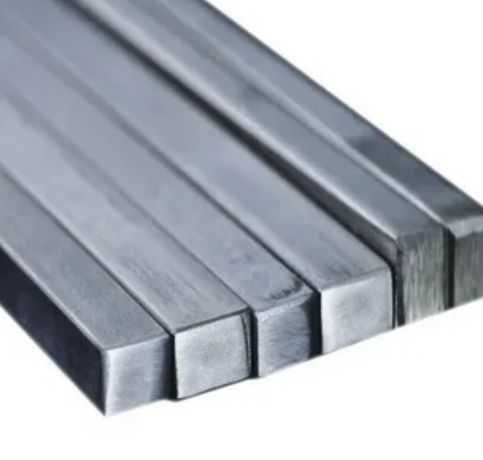

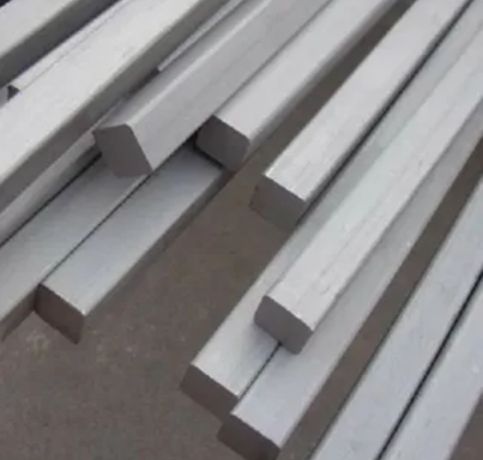

Austenitic stainless steel with columbium (niobium) added for superior corrosion resistance comprises Stainless Steel 347 Square Bars and Rods. The alloy composition is composed of 17-19% chromium, 9-13% nickel, and 1-2% columbium. The tensile strength lies in the range of 520-720 MPa, and yield strength lies in the range of 205 MPa along with an elongation of 40%. High resistance to intergranular corrosion, high temperature oxidation, and stress corrosion cracking are provided by these bars and rods. They are incredibly durable, resulting in superior weldability and an ability to offer strength in hot environments. Especially suitable for aeronautic, chemical-processing, and electricity-generating industry applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347 | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-13.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347 | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 347 | 1.4961 | S34700 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 347 square bars are generally resistant to galvanic corrosion due to their high chromium content. However, if exposed to a more anodic material in a corrosive environment, galvanic corrosion may still occur.
Stainless Steel 347 square bars and rods are typically non-magnetic in the annealed condition. However, they may exhibit slight magnetism if cold-worked or hardened.
Yes, Stainless Steel 347 Square Bars can be used for underground applications due to their excellent corrosion resistance and ability to withstand high temperatures. Their durability makes them suitable for harsh environments.
Stainless Steel 347 Square Bars and Rods are widely used in industries where the critical element for high-temperature resistance and corrosion resistance is required. The applications involve these rods and bars in the aerospace, chemical processing, power generation, and petrochemical industry areas. These bars and rods are essentially used for the production of exhaust systems, heat exchangers, reactor cores, and furnace components that have high resistance to intergranular corrosion, oxidation, and stress corrosion cracking. Stainless Steel 347 offers excellent weldability for applications such as critical structures, where various industries need it for use at raised temperatures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
