Semih Metals, based in Istanbul, Turkey, is a reliable manufacturer and supplier of Stainless Steel 316Ti Round Bars and Rods. They offer top-notch stainless steel products designed for outstanding corrosion resistance, high-temperature strength, and long-lasting durability. Crafted with precision and rigorous quality control, these round bars and rods boast excellent dimensional accuracy, a smooth surface finish, and dependable mechanical performance. Semih Metals guarantees that its Stainless Steel 316Ti Round Bars and Rods meet the stringent demands of industries like chemical processing, petrochemical, marine, power generation, and aerospace, where materials need to endure harsh environments and high temperatures.
The composition of Stainless Steel 316Ti Round Bars and Rods primarily includes iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium (0.5–0.7%), with a carefully controlled carbon content. The addition of titanium helps stabilize the alloy against carbide precipitation during welding, providing excellent resistance to intergranular corrosion. On the mechanical side, 316Ti delivers good tensile and yield strength, toughness, and remarkable performance at high temperatures. Its blend of corrosion resistance, oxidation resistance, and mechanical reliability makes it perfect for structural, chemical, and high-temperature industrial applications.
| Specifications | ASTM A276 / ASME SA276 & ASTM A479 / ASME SA276 |
| Range | 3.17 MM TO 350 MM DIA |
| Dia Meter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | 0.1 | ||
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
| Density | kg/dm³ | 8 |
|---|---|---|
| Modulus of elasticity | GPa | 200 |
| Thermal conductivity | W/m°C | 15 |
| Heat capacity | J/kg°C | 500 |
| Electrical resistivity | µΩm | 0.75 |
| Poissons ratio | 0.3 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

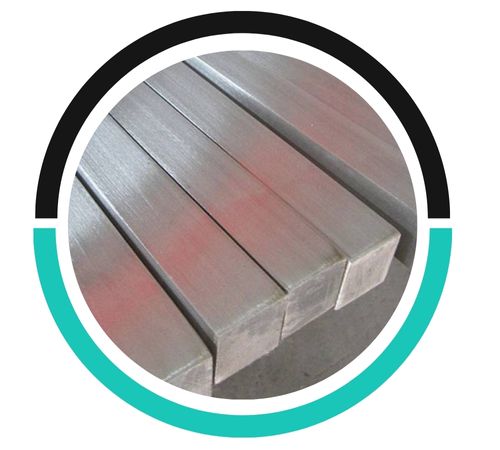

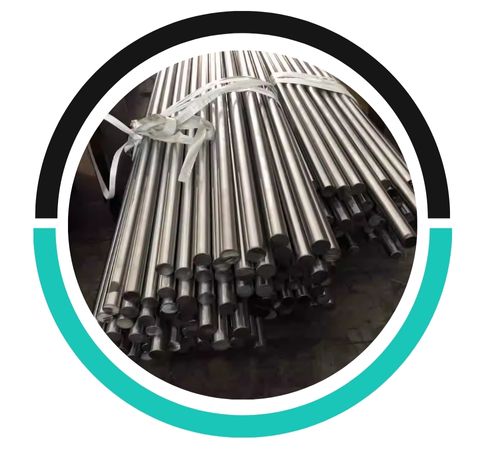

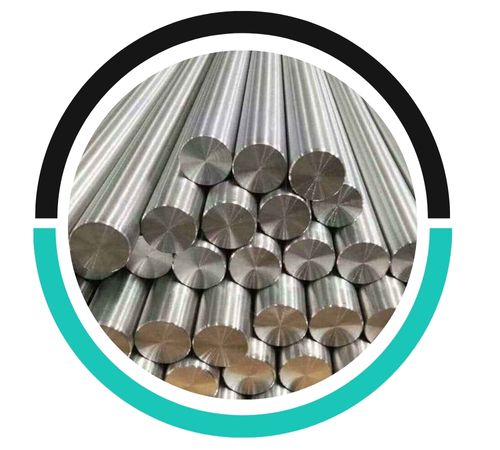

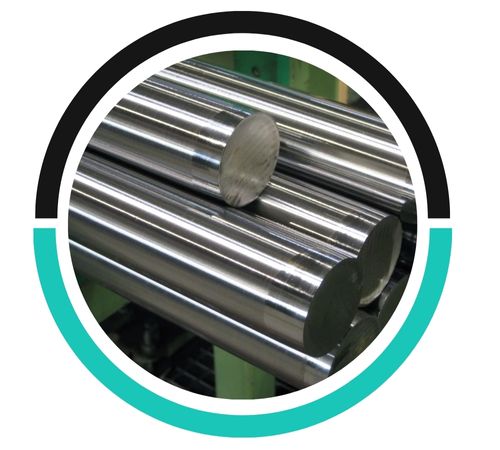

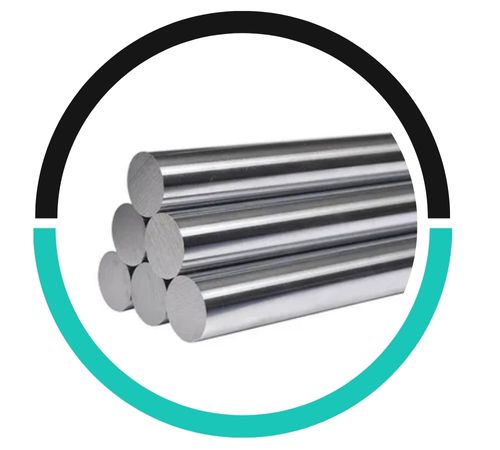

We supply a wide range of 316Ti Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Semih Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 316Ti Bars and Rods, catering to industrial, commercial, and personal needs across the Turkey and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@semihmetal.com
These Stainless Steel 316Ti Round Bars and Rods find extensive use in situations that demand high corrosion resistance, strength, and stability under elevated temperatures. They’re commonly utilized in heat exchangers, chemical processing equipment, marine and offshore structures, power generation systems, and aerospace components. Moreover, they are also used in piping systems, pressure vessels, and structural supports that are exposed to corrosive media and thermal cycling. Thanks to their durability, strength, and resistance to intergranular corrosion, Stainless Steel 316Ti Round Bars and Rods are a top choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
