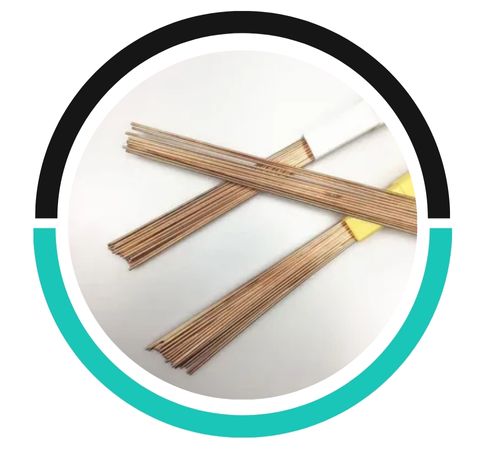

Semih Metals, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Silver Brazing Rods. They proudly serve both local and international markets with a commitment to excellence. Known for their precision engineering and deep material knowledge, the company offers outstanding brazing solutions that deliver dependable performance in even the most demanding industries. Their Silver Brazing Rods are crafted to meet international standards, guaranteeing consistent quality, durability, and efficiency. With a wealth of technical expertise and state-of-the-art facilities, Semih Metals supports various sectors, including automotive, aerospace, electronics, HVAC, and general engineering, making them a trusted partner for customers in need of long-lasting brazing materials.
These Silver Brazing Rods are made from a blend of silver, copper, zinc, and occasionally tin or nickel, depending on the specific grade requirements. This unique composition ensures excellent wettability, corrosion resistance, and strong bonding capabilities with a range of base metals. On a mechanical level, they boast high tensile strength, toughness, and remarkable ductility, enabling them to endure stress and thermal cycling. Their low melting range simplifies usage and enhances precision in joining applications. Thanks to controlled flow and capillary action, Silver Brazing Rods create leak-proof and reliable joints, making them an efficient choice for both high-strength and intricate assembly needs.
Silver Grade of Brazing Alloy | Nominal Composition % | Melting Range | International Standards | |||||
Ag | Cu | Zn | Cd | Others | °C |  DIN:8513 | AWS:A5.8 | |
| SILVER 67Cd | 67 | 11 | 12 | 10 | – | 635-720 | L-Ag67Cd | – |
| Used for brazing of silver goods made of silver alloys. | ||||||||
| SILVER 50Cd | 50 | 15.5 | 16.5 | 18 | – | 620-640 | L-Ag50Cd | BAg-1a |
| One of the lowest melting point Silver Brazing alloys available. It has excellent flow characteristics. The highest joint strength can be obtained with this alloy. Has better resistance to corrosion in chlorine, sulphur and steam environments. | ||||||||
| SILVER 45Cd | 45 | 15 | 16 | 24 | – | 605-620 | L-Ag45Cd | BAg-1 |
| This has the lowest brazing temperature range of the BAg filler metals. It also flows more freely into narrow clearance capillary joints. Its narrow melting range is suitable for rapid or slow methods of heating. | ||||||||
| SILVER 44Cd | 44 | 27 | 13 | 15 | 1P | 595-660 | – | – |
| Low melting filler metal for brazing electrical contacts and molybdenum or copper-tungsten electrodes. | ||||||||
| SILVER 43Cd | 43 | 16 | 20 | 21 | – | 615-620 | – | – |
| This has the shortest melting range of any silver brazing alloys. This alloy is regarded as the best brazing alloy by manu brazers. It is particularly recommended where a minimum brazing temperature is desirable to preserve the properties of the parent metals. Ideal where joints have a close fitup and will produce neat joints with optimum ductility and strength. | ||||||||
| SILVER 40Cd | 40 | 19 | 21 | 20 | – | 595-630 | L-Ag40Cd | – |
| SILVER 35Cd | 35 | 26 | 21 | 18 | – | 610-700 | L-Ag34Cd | BAg-2 |
| A free flowing general purpose brazing alloy. Its broader melting range is helpful where clearances are wide or are not uniform. Unless heating is rapid, care must be taken that the lower melting constituents do not separate out by liquation. | ||||||||
| SILVER 30Cd | 30 | 28 | 21 | 21 | – | 600-690 | L-Ag30Cd | BAg-2 |
| Similar to Silver 40Cd but more economical. | ||||||||
| SILVER 251Cd | 25 | 30 | 27.5 | 17.5 | – | 605-680 | – | BAg-33 |
| Silver 251, 250 & 20Cd have good fillet forming properties with an ability to bridge wide gaps. Their wide melting range limit their applications. Due to their wide melting range they are somewhat more subject to liquation and may require more care during brazing. Therefore, they are not normally recommended for applications with slow heating rates. | ||||||||
| SILVER 250Cd | 25 | 35 | 26 | 14 | – | 605-745 | – | BAg-27 |
| SILVER 20Cd | 20 | 40 | 25 | 15 | – | 605-765 | L-Ag20Cd | – |
| SILVER 12Cd | 12 | 50 | 31 | 7 | – | 620-825 | L-Ag12Cd | – |
| Economical alloy with wide melting range. Like above, preferred for applications having short heating cycles to avoid liquation. Ideal for bridging wider gaps where work pieces are insensitive to heat. | ||||||||
| SILVER 5Cd | 5 | – | – | 7 | – | 335-392 | – | – |
| Used where alloy having higher melting point and better strength than soft solder is required. | ||||||||
| C | Si | Mn | P | S | Cr |
| 95/1.25 | .40 max. | .37 | .045 max | .045 max. | .35 / .45 |
Silver brazing rods generally do not require corrosion protection coatings for most applications. However, in highly corrosive environments, additional coatings or protective measures may be beneficial to prevent degradation.
Silver brazing rods are not designed for welding, as they are intended for brazing. Attempting to weld them can result in poor joint strength and structural integrity.
When installing silver brazing rods, ensure the joint surfaces are clean and properly prepared for effective bonding. Also, control the heating process to avoid overheating or damaging the material.
Silver Brazing Rods find their place in industries where precision, strength, and durability are paramount. In the automotive and aerospace fields, they are essential for joining components that face high stress and vibration. In HVAC and refrigeration, they ensure leak-free connections in copper, brass, and steel piping systems. Electronics manufacturers rely on them for dependable conductivity and thermal stability. Additionally, they are utilized in tool manufacturing, jewelry making, and general engineering to create strong, clean joints. Their versatility, efficiency, and ability to bond dissimilar metals make them invaluable across multiple industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
