Semih Metals, based in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch Permalloy bars and rods. With years of experience in specialty metals, they’re known for their precision engineering, cutting-edge manufacturing techniques, and dependable product quality. Serving a variety of industries around the globe, Semih Metals delivers materials that adhere to the highest international standards. As a frontrunner in magnetic alloys, they offer tailored solutions to meet specific technical needs. Their dedication to quality, innovation, and customer satisfaction makes Semih Metals a trustworthy partner for businesses in search of premium Permalloy products.
Permalloy bars and rods are made up of roughly 80% nickel and 20% iron, which gives them outstanding magnetic properties. This alloy boasts very high magnetic permeability, low coercivity, and minimal core losses, making it perfect for sensitive electromagnetic applications. On the mechanical side, it features good ductility, high toughness, and wear resistance under operational stress. The material can be precision-machined into intricate shapes while maintaining stability. With excellent electrical conductivity and structural integrity, Permalloy bars and rods deliver consistent performance, even in challenging thermal and magnetic conditions.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
Permalloy bars are generally not highly susceptible to galvanic corrosion, as they have good resistance to corrosion. However, when in contact with dissimilar metals, galvanic corrosion may still occur under certain conditions.
Yes, Permalloy bars can be welded, but due to their high nickel content, specialized welding techniques, such as TIG or laser welding, and proper precautions are necessary to maintain magnetic properties.

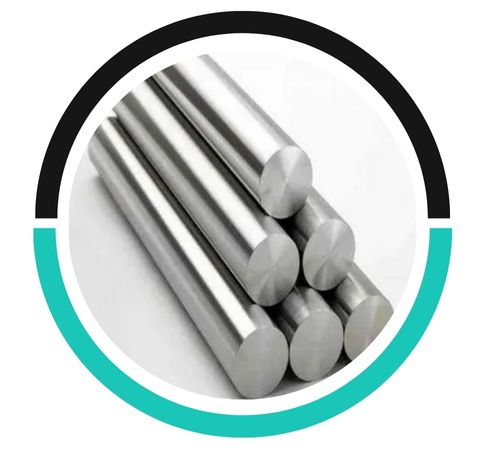

Permalloy rods are available in various sizes, typically ranging from 1/16" to 4" in diameter. Common finishes include bright, polished, or cold-drawn finishes, depending on the application requirements.
These bars and rods are widely utilized in industries that demand precise magnetic performance. They are crucial in manufacturing magnetic shielding components, transformer cores, magnetic sensors, and recording heads. In the electronics field, they are vital for inductors, coils, and magnetic amplifiers due to their low power loss and high efficiency. The aerospace and defense sectors depend on Permalloy for sensitive navigation and detection instruments. Additionally, it finds applications in telecommunication devices and medical imaging equipment. Its blend of stability, efficiency, and durability makes Permalloy essential across advanced engineering and technology sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
