Semih Metals, located in Istanbul, Turkey, stands out as a leading manufacturer and supplier of top-notch industrial metals, particularly known for their Nitronic 60 Bars and Rods. With a strong dedication to precision, durability, and customer satisfaction, Semih Metals caters to a diverse array of industries that depend on reliable and corrosion-resistant materials. Their Nitronic 60 Bars and Rods are crafted under rigorous quality control measures, guaranteeing consistent performance even in the toughest conditions. By prioritizing innovation and efficiency in their global supply chain, Semih Metals offers customized solutions for engineering, manufacturing, and industrial needs, making them a trusted ally for clients around the globe.
Nitronic 60 Bars and Rods are mainly made up of iron, chromium, nickel, and molybdenum, with small amounts of manganese, silicon, and copper added in. This austenitic stainless steel alloy boasts impressive mechanical properties, such as high tensile and yield strength, remarkable hardness, and exceptional fatigue resistance. Nitronic 60 is particularly resistant to wear, galling, and corrosion, especially in oxidizing and high-stress situations. Its unique blend of strength and toughness makes it perfect for components that face heavy loads, cyclic stress, and harsh chemical environments, all while ensuring dimensional stability and durability over an extended service life.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

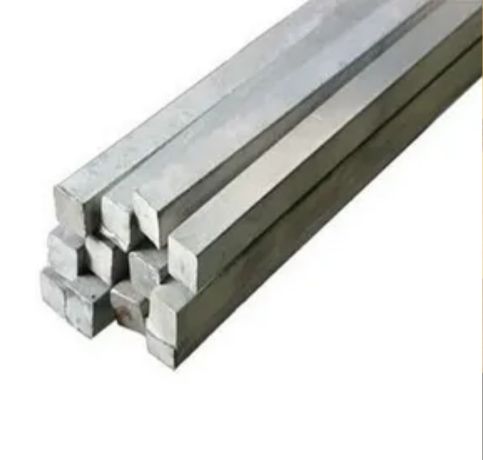

| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

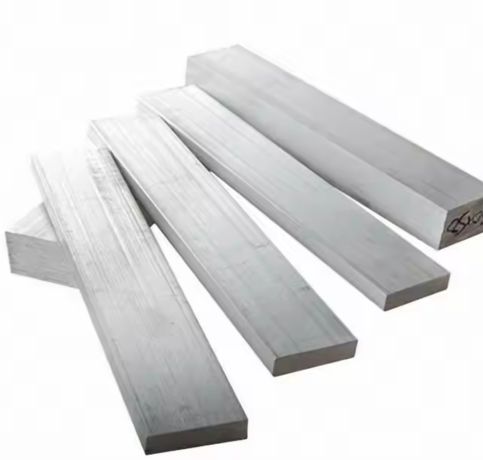

| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

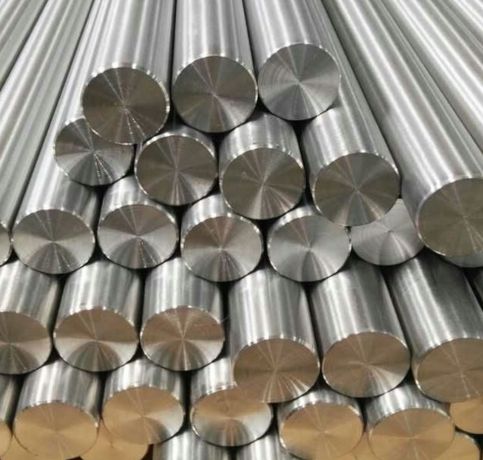

| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 Bars and Rods find extensive use in industries where wear and corrosion resistance are paramount. They are perfect for crafting pump shafts, valve stems, fasteners, and fittings in chemical, petrochemical, and marine sectors. This alloy is also widely utilized in aerospace, automotive, and industrial machinery for parts like gears, bushings, and spindles that demand high strength and anti-galling features. Furthermore, Nitronic 60 is well-suited for medical and food processing equipment, where hygiene and resilience against aggressive environments are crucial. Its versatility and dependability make it a go-to material for many applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
