Semih Metals, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium industrial metals, with a particular focus on Nitronic 50 Bars and Rods. Known for its precision engineering, Semih Metals serves a variety of industries, offering materials that boast remarkable strength, corrosion resistance, and durability. The company places a strong emphasis on rigorous quality control and cutting-edge manufacturing processes, ensuring that every Nitronic 50 product adheres to international standards. With a commitment to customer satisfaction, Semih Metals provides dependable solutions for demanding applications, supporting engineering projects that need to perform under tough conditions while keeping costs manageable and consistency high across all shipments.
Nitronic 50 Bars and Rods are primarily made up of iron, nickel, and chromium, with small amounts of manganese, silicon, and molybdenum added to boost their mechanical properties. This austenitic stainless steel alloy is known for its outstanding corrosion resistance, especially in oxidizing and mildly reducing environments. It delivers superior strength and hardness compared to regular stainless steels, typically featuring a tensile strength of around 860 MPa and a yield strength close to 450 MPa. Its excellent fatigue resistance, good ductility, and non-magnetic characteristics make it suitable for both cold and hot working processes, ensuring reliable performance across a broad temperature range.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

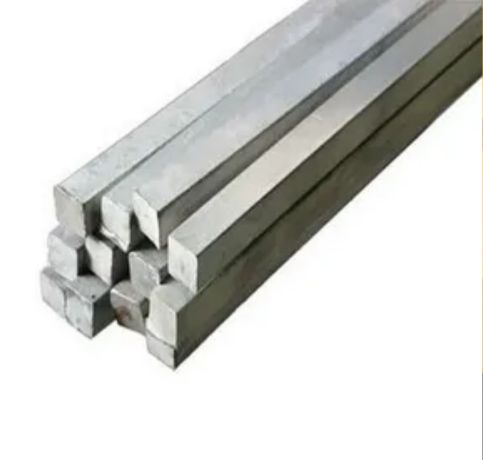

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

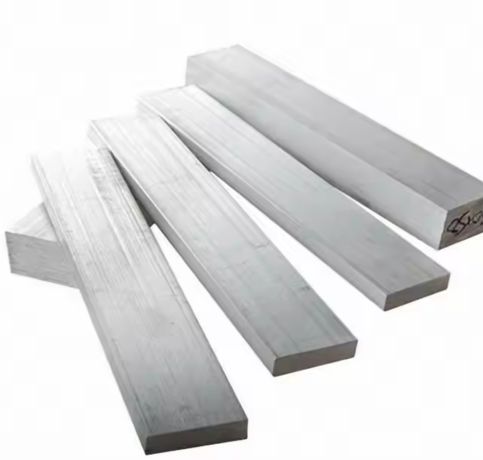

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

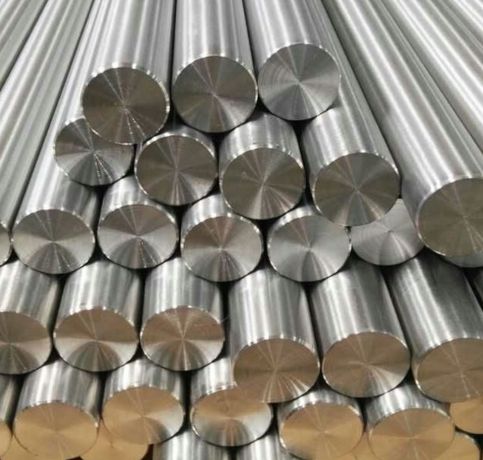

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
Nitronic 50 Bars and Rods find extensive use in applications that require a combination of high corrosion and wear resistance along with strength. They are commonly utilized in industries such as chemical processing, aerospace, marine, and food processing, where exposure to harsh environments is a regular occurrence. These materials are perfect for pump shafts, valve components, fasteners, fittings, and structural parts that need to be reliable over the long term. Their non-magnetic properties and stability under stress make them ideal for instrumentation and medical devices. Additionally, Nitronic 50 is employed in power generation and petrochemical plants, providing durability in high-temperature environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
