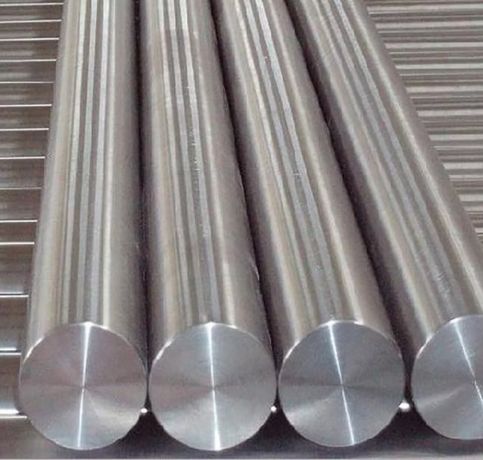

Semih Metals, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-quality Monel Bright Bars, catering to industries around the globe with precision-engineered solutions. Renowned for their exceptional strength, durability, and commitment to international quality standards, Semih Metals delivers bright bars that excel in corrosion resistance, dimensional accuracy, and a sleek finish. These Monel Bright Bars are crafted for demanding applications where performance, reliability, and superior surface quality are essential. With state-of-the-art production facilities and a customer-centric approach, Semih Metals guarantees consistent quality, precise specifications, and timely delivery, making them a reliable partner for industrial needs worldwide.
Monel Bright Bars consist of about 63–70% nickel and 28–34% copper, along with trace amounts of iron, manganese, carbon, and silicon. This nickel-copper alloy is known for its remarkable resistance to seawater, as well as acidic and alkaline environments, and it effectively combats stress corrosion cracking. The mechanical properties include a tensile strength of roughly 550–620 MPa, a yield strength of around 240 MPa, and impressive ductility and toughness across a broad temperature range. The smooth, polished surface of these bright bars not only enhances machinability but also makes them perfect for precision applications that require outstanding strength and corrosion resistance.
| Specifications | : | ASTM B164 / ASTM SB164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Bright |
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
| – | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| – | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| – | 0.15 | – | 52.0-57.0 | – | – | 0.05 | rest/bal | – | – | 0.50 | Mn 0.10; Si 0.10;S o.024 | ||
| – | 0.10 | – | – | – | 63.0-17.0 | – | – | 2.5-3.5 | rest/bal | – | 0.50 | 2.0 | Mn 1.5;Si 0.5; S 0.010 |
| – | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| – | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | 1.2 | Mn 1.0; S 0.04 |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22 millimeter | 2.979 | 0.908 | 3 to 1/4″ | 41.996 | 12.800 |
| 3 millimeter | 0.055 | 0.017 | 20 millimeter | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4 millimeter | 0.098 | 0.030 | 24 millimeter | 3.543 | 1.080 | 3 to 3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3 to 1/2″ | 48.772 | 14.850 |
| 5 millimeter | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4 to 1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25 millimeter | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6 millimeter | 0.223 | 0.068 | 27 millimeter | 4.490 | 1.368 | 4 to 3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26 millimeter | 4.170 | 1.271 | 4 to 1/2″ | 80.340 | 24.4487 |
| 7 millimeter | 0.298 | 0.091 | 30 millimeter | 5.548 | 1.691 | 5 to 1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1 to 1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8 millimeter | 0.398 | 0.120 | 32 millimeter | 6.314 | 1.894 | 6 to 1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1 to 1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35 millimeter | 7.553 | 2.390 | 7 to 1/2″ | 225.000 | 68.226 |
| 9 millimeter | 0.498 | 0.152 | 1 to 3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11 millimeter | 0.748 | 0.228 | 38 millimeter | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10 millimeter | 0.620 | 0.189 | 36 millimeter | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12 millimeter | 0.889 | 0.271 | 40 millimeter | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1 to 1/2″ | 8.951 | 2.715 | |||
| 13 millimeter | 1.043 | 0.318 | 1 to 3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1 to 5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1 to 7/8″ | 13.977 | 4.260 | |||
| 14 millimeter | 1.207 | 0.368 | 45 millimeter | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50 millimeter | 15.414 | 4.698 | |||
| 15 millimeter | 1.391 | 0.424 | 48 millimeter | 14.205 | 4.330 | |||
| 17 millimeter | 1.791 | 0.543 | 2 to 1/8″ | 17.963 | 5.475 | |||
| 16 millimeter | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18 millimeter | 2.001 | 0.610 | 60 millimeter | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2 to 1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2 to 3/8″ | 22.435 | 6.838 | |||
| 2 to 1/2″ | 24.856 | 7.576 | ||||||
| 2 to 5/8″ | 27.409 | 8.354 | ||||||
| 2 to 3/4″ | 30.083 | 9.169 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@semihmetal.com
Yes, Monel Bright Bars can be heat treated to enhance their mechanical properties, such as strength and hardness. However, care must be taken to avoid excessive heat, which could affect their corrosion resistance.
When installing Monel Bright Bars, ensure proper handling to avoid mechanical damage and stress concentrations. Additionally, consider material compatibility, environmental conditions, and temperature variations to optimize performance and longevity.
Monel Bright Bars find extensive use in marine, chemical processing, oil and gas, petrochemical, aerospace, and power generation sectors. They are particularly suited for crafting shafts, fasteners, valves, heat exchanger components, pump parts, and precision-machined equipment that face corrosive environments. Their exceptional durability reduces maintenance needs and prolongs service life, ensuring both cost-effectiveness and reliability. Semih Metals’ Monel Bright Bars offer robust, corrosion-resistant, and high-performance solutions for industries that require strong, long-lasting nickel-copper alloy materials in challenging operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
