Incoloy 825 Bars/Rods

Semih Metals, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-performance metal alloys, particularly **Invar 42 Bar and Rod**. With years of expertise in the metallurgical field, Semih Metals is dedicated to providing precision-engineered materials that meet the rigorous demands of industries like aerospace, electronics, and cryogenics. The company prides itself on its commitment to quality, innovation, and customer satisfaction, offering both standard and custom specifications of Invar 42 Bar and Rod to clients around the globe. Thanks to advanced manufacturing techniques and stringent quality control, Semih Metals has earned a strong reputation for reliability and excellence in Invar alloy solutions.

Incoloy 825 Bars Supplier in Turkey, Incoloy UNS N08810 Hollow Rods Price List in Istanbul, Incoloy Alloy 2.4858 Rectangular Bars Supplier in Bursa, Incoloy DIN 2.4858 Hexagonal Bars Exporter in West Istanbul, Incoloy 825 T-Bars Exporter in Turkey, Incoloy 825 Flat Rods Exporter in Bodrum, ASME SB408 Incoloy Alloy 825 Flat Bars Turkey, Incoloy UNS N08825 Hollow Round Bar Manufacturer in Antalya, Incoloy Alloy 825 Round Bars Distributor in Turkey, Incoloy 825 Polished Rods Dealer in West Istanbul

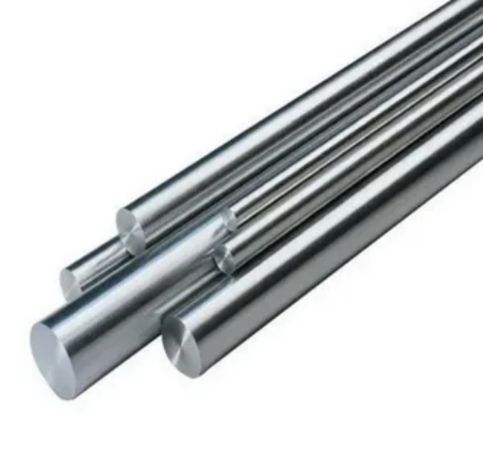

Incoloy 825 Round Bars

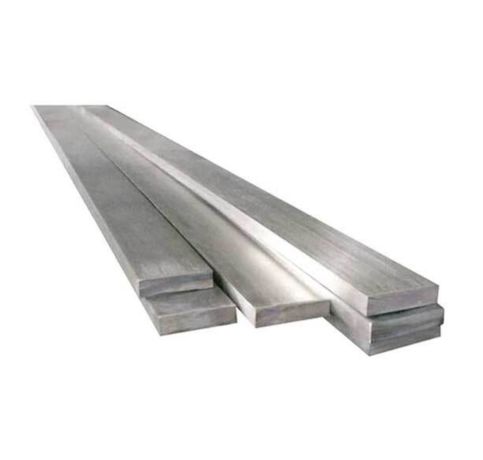

Incoloy 825 Rectangular Bars

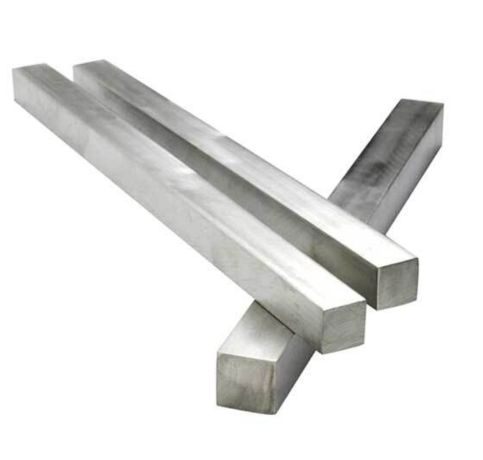

Incoloy 825 Square Rods

**Invar 42 Bar and Rod** are made up of roughly 41–43% nickel, with the remainder being iron, along with small amounts of carbon, manganese, and silicon. This iron-nickel alloy is particularly renowned for its remarkably low coefficient of thermal expansion. In terms of mechanical properties, Invar 42 Bar and Rod boast tensile strengths between 450 and 700 MPa, a yield strength of about 275 MPa, and elongation rates ranging from 30% to 45%, depending on their condition and heat treatment. These characteristics make the material perfect for maintaining dimensional stability across a wide temperature range, especially in high-precision engineering settings.

Incoloy 825 Rods Dealer in West Istanbul, Incoloy 825 Round Bars Manufacturer in West Istanbul, Incoloy DIN 2.4858 Square Bars Supplier in Bodrum, Incoloy Alloy 825 Flat Bars Price List in Istanbul, Incoloy 825 Rectangular Bars Supplier in Antalya, Incoloy 825 Bars Price List in İzmir, Incoloy Alloy 825 Round Bars Exporter Stockist in Bursa, Stockist of Incoloy 825 Round Bars in Bursa

Incoloy 825 Bars and Rods Specification

Incoloy 825 Material Specification: ASTM B425/ ASME SB425 Inco 825

Grade: Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), ASTM B425 Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800, 1.4876)

Form: Round, Square, Hex (A/F), Bush, Rectangle, Flat, Billet, Ingot, Forging, PSQ Bar, Wire Rod, Wire (Coil Form), Wire-mesh etc.

Size Range: 15NB to 150NB In manufacturing process: Cold drawn/ Extruded

Length: 100 mm To 3000 mm Long & Above

Diameter (Size) : Metric M6 to M48, Inches – 1/4’’ to 2’’

Tolerance : H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’ requirements

Finish : Cold Drawn, Shot Blast & Drawn, 240 Grit Belt Polished, Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish, High Polished

Condition : Cold Drawnd Polished Cold Drawn Centreless Ground & Polished, Threading

Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline

Chemical Compositions of Incoloy 825 Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

You Need Our Support, to Have Any Projects?

Test Certificate

Why Semih Metals?

Packaging

Weight Chart of Incoloy 825 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 825 Bars and Rods Types

ASTM B166 Incoloy Alloy 825 Rectangular Rods Exporter in Turkey, Incoloy 2.4858 Round Bars Stockist in Istanbul, Incoloy 825 Hex Bars Supplier in Turkey, Incoloy UNS N08825 Cold Drawn Round Bars Distributor in İzmir, ASTM B166 Incoloy Alloy 825 Rods Stockist Antalya Incoloy 825 Rods Price in Antalya, Incoloy 825 Round Bars, Incoloy DIN 2.4858 Rectangular Bars Supplier in İzmir

Frequently Asked Questions (FAQ)

Are Incoloy 825 Bars and Rods Corrosion-Resistant?

Yes, Incoloy 825 Bars and Rods are highly corrosion-resistant, particularly against acids like sulfuric and phosphoric acid. Their nickel, iron, and molybdenum composition ensures excellent resistance to pitting, crevice corrosion, and stress corrosion cracking.

Can Incoloy 825 Bars and Rods be Customized in Size and Length?

Yes, Incoloy 825 Bars and Rods can be customized in size and length to meet specific application requirements. They are available in various dimensions, ensuring versatility for diverse industries.

How Do Incoloy 825 Bars and Rods Perform in High-Temperature Environments?

Incoloy 825 Bars and Rods perform exceptionally well in high-temperature environments, maintaining strength and stability. They exhibit excellent resistance to oxidation and scaling at elevated temperatures.

Incoloy 825 Bars and Rods Uses

You’ll find **Invar 42 Bar and Rod** utilized in various industries where it’s crucial to maintain dimensional accuracy despite temperature changes. They play a vital role in the production of electronic components, semiconductor tooling, telecommunications hardware, aerospace instrumentation, and cryogenic systems. Specific uses include glass-to-metal seals, lead frames, precision measuring devices, and components for satellites and optical systems. Thanks to their thermal stability, Invar 42 Bar and Rod are also used in composite tooling for aircraft manufacturing and in scientific instruments.
