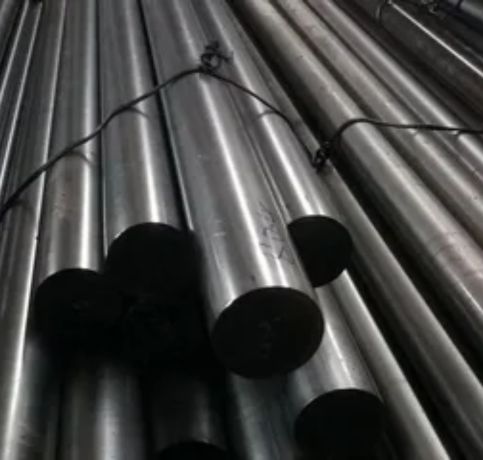

Semih Metals, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Carbon Steel Spring Bars and Rods. With years of experience in the metal production industry, this company is dedicated to providing precision-engineered products that adhere to global standards. By blending cutting-edge technology with rigorous quality control, Semih Metals ensures that every product boasts durability, strength, and consistency. They cater to various sectors, including automotive, construction, machinery, and energy, and have established themselves as a trusted partner known for their reliability and innovative solutions. Their commitment to customer satisfaction and sustainable manufacturing practices makes them a go-to choice around the globe.
When it comes to Carbon Steel Spring Bars and Rods, these are generally made from medium to high carbon steel, with carbon content ranging from 0.50% to 1.00%. To enhance toughness and wear resistance, elements like manganese, silicon, and chromium are often added. These materials are known for their impressive tensile strength, hardness, and fatigue resistance, making them perfect for dynamic applications. Their mechanical properties include high elasticity, good yield strength, and excellent formability when subjected to heat treatment. This balance of strength and flexibility guarantees reliable performance in demanding spring and structural applications.
|
Steel Grade |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
B |
Cu |
Mo |
V |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
55 |
0.52-0.60 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.30 max |
/ |
0.25 max |
/ |
/ |
|
65 |
0.62-0.70 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
70 |
0.62-0.75 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
75 |
0.72-0.80 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.30 max |
/ |
0.25 max |
/ |
/ |
|
85 |
0.95-1.04 |
0.40 max |
0.35 max |
0.025 max |
0.025 max |
/ |
/ |
/ |
/ |
/ |
/ |
|
65Mn |
0.62-0.70 |
0.90-1.20 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
60Si2Mn |
0.56-0.64 |
0.70-1.00 |
1.50-2.00 |
0.035 max |
0.035 max |
0.35 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
50CrVA |
0.46-0.54 |
0.50-0.80 |
0.17-0.37 |
0.025 max |
0.025 max |
0.80-1.10 |
0.35 max |
/ |
0.25 max |
/ |
0.10-0.20 |
|
55SiCrA |
0.51-0.59 |
0.50-0.80 |
1.20-1.60 |
0.025 max |
0.025 max |
0.50-0.80 |
0.35 max |
/ |
0.25 max |
/ |
/ |
|
60Si2CrA |
0.56-0.64 |
0.40-0.70 |
1.40-1.80 |
0.025 max |
0.025 max |
0.70-1.00 |
0.35 max |
/ |
0.25 max |
/ |
/ |
|
Steel Grade |
Tensile Strength Rm (Mpa) |
Yield Strength Rp0.2 (Mpa) |
Elongation A5 (%) |
Area Reduction Ratio C (%) |
|---|---|---|---|---|
|
65 |
980 min |
785 min |
9 min |
35 min |
|
70 |
1030 min |
835 min |
8 min |
30 min |
|
85 |
1130 min |
980 min |
6 min |
30 min |
|
65Mn |
980 min |
785 min |
8 min |
30 min |
|
60Si2Mn |
1275 min |
1180 min |
5 min |
25 min |
|
50CrVA |
1275 min |
1130 min |
10 min |
40 min |
|
55SiCrA |
1450-1750 |
1300 min |
6 min |
25 min |
|
60Si2CrA |
1765 min |
1570 min |
6 min |
20 min |
When selecting carbon steel spring bars, consider factors like the required strength, durability, and fatigue resistance for the specific application. Also, evaluate the environment's corrosion potential and the bar's ability to retain spring properties over time.
Carbon steel spring bars are generally not suitable for cryogenic applications due to their reduced toughness and brittleness at extremely low temperatures. Materials like stainless steel or special alloys are preferred for such conditions.
Carbon steel spring rods are available in various sizes, typically ranging from 1/4 inch to several inches in diameter, with lengths varying based on application requirements. Custom sizes can be manufactured to meet specific load, stress, or design needs.
Carbon Steel Spring Bars and Rods find extensive use in industries that require robust, resilient, and wear-resistant components. In the automotive field, they play a crucial role in the production of suspension springs, clutches, and engine parts. The construction and heavy machinery sectors depend on them for load-bearing applications, fasteners, and structural reinforcements. In the energy sector and industrial equipment, they are essential for crafting precision tools, cutting instruments, and machinery components. Their elasticity and durability also make them ideal for agricultural equipment and railways. With such a wide range of applications, these products ensure long-term reliability in environments that demand strength, resilience, and high performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
