Semih Metals stands out as a premier manufacturer and supplier located in Istanbul, Turkey, with a focus on high-performance metal alloys like Invar 42 Bar and Rod. With decades of expertise in the metallurgical field, Semih Metals provides precision-engineered materials that meet the rigorous demands of industries such as aerospace, electronics, and cryogenics. The company prides itself on its commitment to quality, innovation, and customer satisfaction, offering both standard and custom specifications of Invar 42 products to clients around the globe. Thanks to cutting-edge manufacturing techniques and strict quality control measures, Semih Metals has built a solid reputation as a reliable source for top-notch Invar 42 solutions.
Invar 42, or UNS K94100, is an iron-nickel alloy that contains about 41–43% nickel, with the remainder being iron, along with small amounts of carbon, manganese, and silicon. It’s well-known for its remarkably low coefficient of thermal expansion. In terms of mechanical properties, Invar 42 boasts a tensile strength of roughly 450–700 MPa, a yield strength of about 275 MPa, and an elongation range of 30–45%, depending on its temper and treatment. This alloy maintains excellent dimensional stability over a wide temperature range, making it perfect for precision applications.
| Grade | EN1A Round Bar |
|---|---|

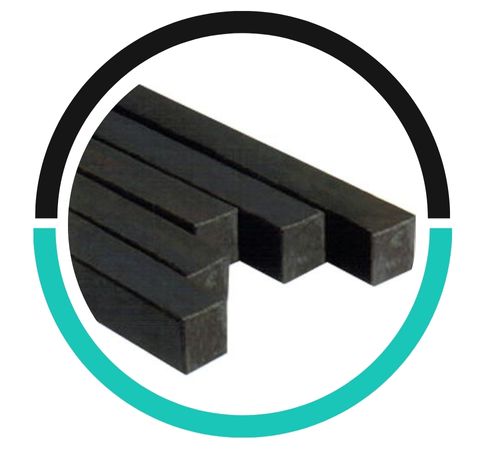

| EN1A Square bar size | 4 to 100mm |
| Carbon Steel EN-1A Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

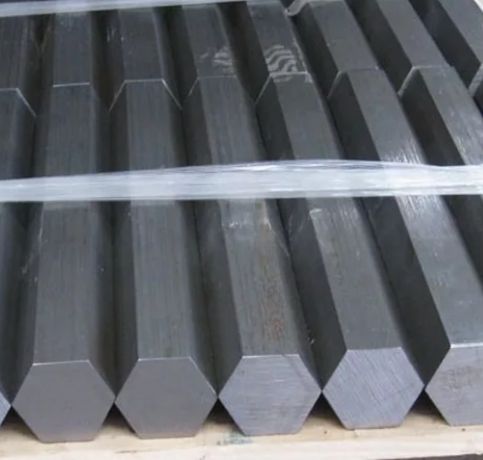

| CS EN-1A Hex Bar size | 2-100mm A/F |
| EN1A Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Carbon Steel EN-1A Rectangles Size | 33 x 30mm to 295 x 1066mm |
| CS EN-1A Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| EN1A Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Carbon Steel EN-1A Section | 3.0 to 12.0mm thickness |

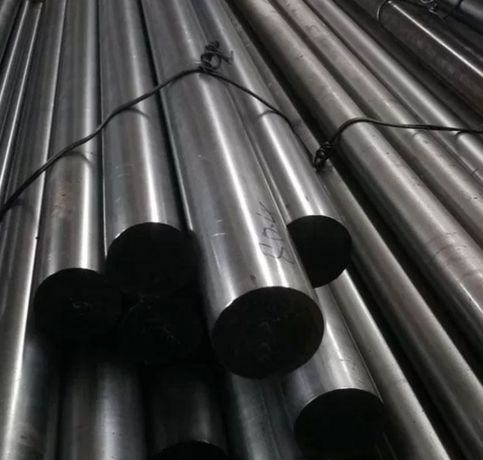

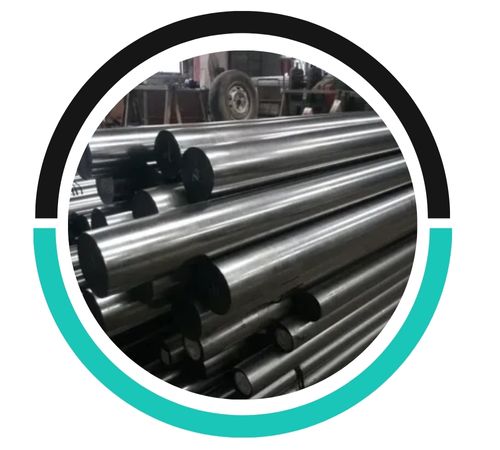

| CS EN-1A Round bar size | Diameter: 3-~800mm |
| EN1A Billet Size | 1/2″ to 495mm Diameter |
| Carbon Steel EN-1A Round Bar Standard Dimensions | Diameter / Height: |
| EN1A Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Carbon Steel EN-1A Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

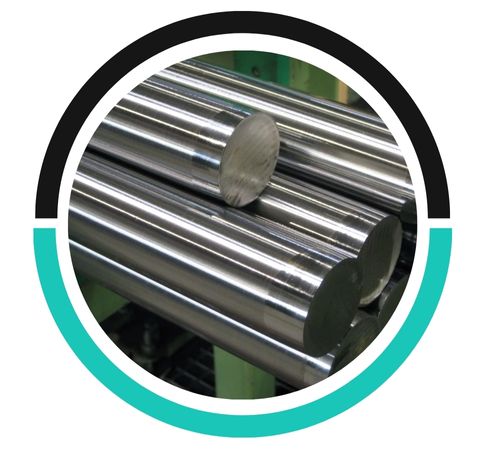

| CS EN-1A Technique | EN1A Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| EN1A Condition | Hardened & tempered, annealed |

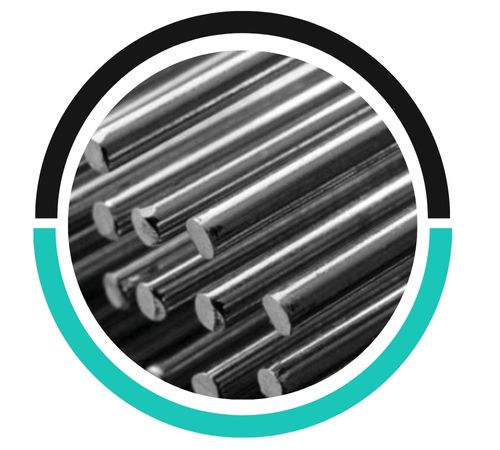

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | EN1A Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our EN1A Round bar conforms to NACE MR0175/ISO 15156 | |
230M07 (EN1A) Specification Chemical composition | |
|---|---|
Carbon | 0.15% max |
Manganese | 0.90-1.30% |
Silicon | 0.40% max |
Sulphur | 0.25-0.35% |
Phosphorus | 0.070 Max |
Chromium | – |
Molybdenum | – |
Nickel | – |
Lead | 0.15-0.35% (Where specified) |
Max Stress | 370-480 n/mm2 Min | dependent on ruling section |
Yield Stress | 240-400 n/mm2 Min | dependent on ruling section |
0.2% Proof Stress | 225-360 n/mm2 Min | dependent on ruling section |
Elongation | 6-10% Min | dependent on ruling section |
| STANDARD | UNS | DIN |
|---|---|---|
| EN1A Round Bar | – | – |
Carbon Steel EN-1A Bars are typically available in thicknesses ranging from 6 mm to 300 mm or more, depending on the manufacturer and specific requirements of the application.
Carbon Steel EN-1A bar has high machinability, tensile strength of 400-550 MPa, yield strength of 280 MPa, hardness of 130-180 HB, and excellent ductility for general engineering applications.
Carbon Steel EN-1A Bars are used for manufacturing precision components like gears, shafts, spindles, and fasteners due to their excellent machinability, surface finish, and suitability for high-speed machining applications.
Invar 42 Bar and Rod are extensively utilized in sectors where dimensional stability and minimal thermal expansion are essential. Typical applications include electronic components, telecommunications, aerospace instrumentation, precision measurement devices, and cryogenic engineering. The alloy’s stability across varying temperatures makes it ideal for lead frames, glass-to-metal seals, and shadow masks in CRTs. Additionally, it’s used in tooling for aerospace composite fabrication and high-precision instruments like gyroscopes and laser components. Invar 42 is particularly preferred in environments where thermal fluctuations could jeopardize structural integrity or precise alignments, ensuring long-lasting reliability and accuracy.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
